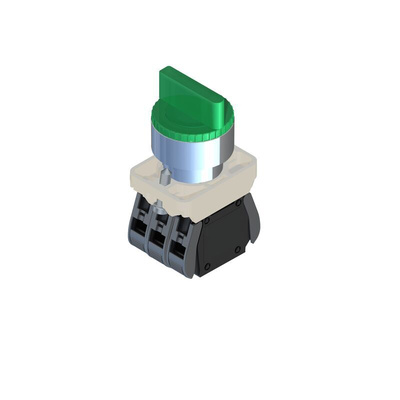

RS PRO Knob Selector Switch - (1NC/1NO) 30mm Cutout Diameter, Illuminated 2 Positions

RS PRO 1NC + 1NO Green Illuminated Selector Switch, 690V

A hardwearing and reliable 2 position green illuminated selector switch with a 1NC + 1NO configuration and Class II double insulation designed for easy panel installation.
Constructed with a robust Chrome plated Zamak casing for impact resistance and an IP rating of IP65 at the front providing protection from dust and water. The selector switch has an outer diameter of 30mm and features screw down termination for a secure fit free from movement.
The LED switch is complete with short circuit protection, a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing 2 position selector switch perfect for industrial environments.

Features and Benefits

2 position selector switch
1NC + 1NO configuration
230V ac Green LED illumination
Rated insulated voltage of 690V
30mm outer diameter
IP65 rated (IP20 back)
Screw terminals with cable clamp
Class II double insulation
Operating temperature of -25 to +70°C
300,000 operations
Short circuit protection
Pollution degree 3
Chrome plated Zamak case

Approvals and Standards: CE/ UKCA, EN60947-5-1, UL508
