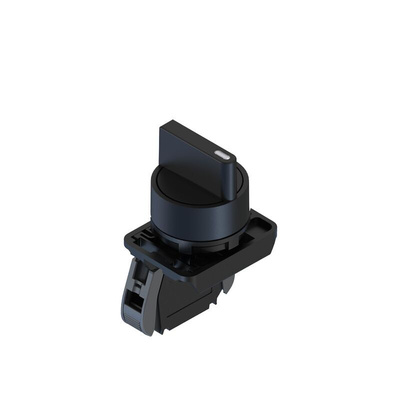

RS PRO Knob Selector Switch - (1NO) 30mm Cutout Diameter, Illuminated 2 Positions

RS PRO 2 Position 1NO Short Lever Black Selector Switch, 690V

A hardwearing and reliable black 2 position selector switch with a 1NO configuration and Class II double insulation designed for easy panel installation.
Constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 at the front providing protection from dust and water. The selector switch has an outer diameter of 30mm and features a fixing ring for easy and fast assembly providing a secure fit free from movement.
The 1NO switch is complete with short circuit protection, a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing selector switch perfect for industrial environments.

Features and Benefits

1NO selector switch
2 positions
Rated insulated voltage 690V
30mm outer diameter
IP65 rated (IP20 back)
Screw terminals with cable clamp
Class II double insulation
Operating temperature of -25 to +70°C
300,000 operations
Short circuit protection
Pollution degree 3
Thermoplastic case

Approvals and Standards: CE/ UKCA, EN60947-5-1, UL508
