RS PRO Knob Selector Switch - (1NO), Illuminated 2 Positions

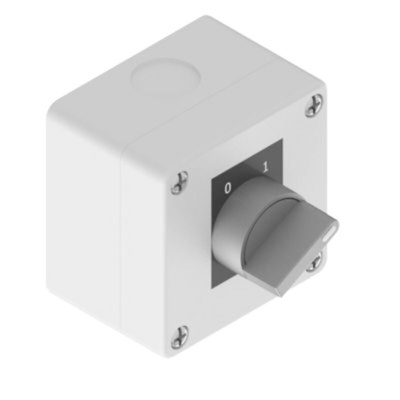

RS PRO 2 Position 1NO Enclosed Selector Switch Unit, 690V

A hardwearing and reliable 2 position enclosed selector switch marked with positions 1 and 0 featuring a 1NO configuration and Class II double insulation.
Constructed with a robust Thermoplastic casing for impact resistance and an IP rating of IP65 across the whole of the unit providing protection from dust and water. The selector switch module has enclosure dimensions of 70 x 70 x 54mm and features 2 x M20 knockouts enabling an easy and secure cable connection.
The 1NO selector switch unit is complete with short circuit protection, a wide operating temperature of -40 to 70°C and a long mechanical life of 1000000 operations. A tough and hardwearing enclosed selector switch perfect for industrial and commercial environments.

Features and Benefits

1NO selector switch
2 positions
Rated insulated voltage 690V
IP65 rated
Class II double insulation
Operating temperature of -40 to +70°C
1 million operations
Short circuit protection
Pollution degree 3
Thermoplastic case
Dimensions of 70 x 70 x 54mm

Approvals and Standards: CE/ UKCA, IEC 60947-1 and EN 60947-1

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
