RS PRO, SP 12 Position 30° Multi Step Cam Switch, 500V ac, 16A, Knob Actuator

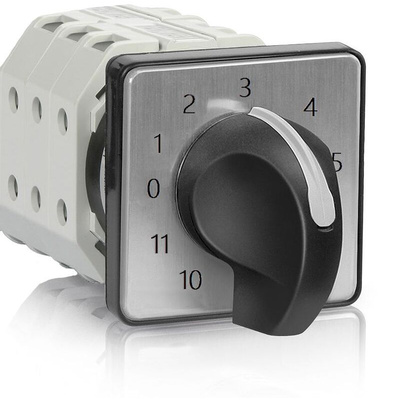

RS PRO Single Pole 12 Position Rotary Cam Step Switch (500V/ 16A)

A tough and reliable rotary cam switch with Single Pole configuration and 12 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 12 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 12 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 to 11 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.

Features and Benefits

Rotary cam switch
Single Pole configuration
12 positions
Marked 0 to 11
IP65 rated
Contact rating of 16 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm

Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
