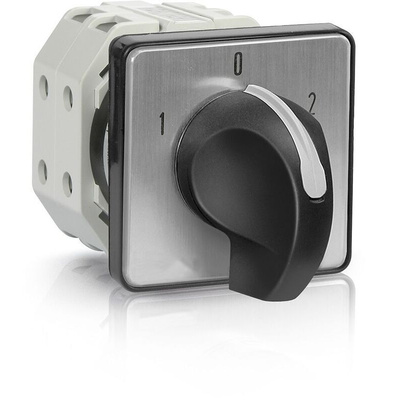

RS PRO, DP 3 Position 60° Changeover Cam Switch, 500V ac, 25A, Knob Actuator

RS PRO Double Pole 3 Position 60° Change Over Rotary Cam Switch (500V/ 25A)

A tough and reliable 60° rotary cam switch with 2 Pole configuration and 3 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 3 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and 2 or 4 hole mounting for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 3 position cam switch features a plate size of 50mm x 50mm marked with symbols 0, 1 and 2 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.

Features and Benefits

Rotary cam switch
2 Pole configuration
3 positions
Marked 0 to 2
IP65 rated
Contact rating of 25 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm
2 and 4 hole mounting

Approvals and Standards: CE/ UKCA, EN 60947-3, UL508
