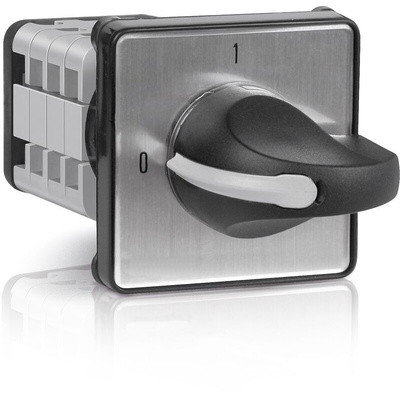

RS PRO, SP 2 Position 90° Rotary Cam Switch, 500V ac, 12A, Knob Actuator

RS PRO Single Pole 2 Position 90° Rotary Cam Switch (500V/ 12A)

A tough and reliable 90° rotary cam switch with Single Pole configuration and 2 selectable positions designed for harsh industrial environments. Constructed with Silver Alloy contacts for a long mechanical and electronic lifespan.
The 2 position cam switch is enclosed in a Thermoplastic casing for impact resistance with captive screw clamps and 4 fixing holes for a secure installation, removable protection covers on all terminals and an IP rating of IP65 once installed providing excellent protection from dust, and water.
Easy to operate with knob actuation the 2 position cam switch features a plate size of 50mm x 50mm marked with symbols 0 and 1 and is easily connected using 2 x 4mm solid or 2 x 2.5mm flexible conductors. A hardwearing and reliable rotary cam switch ideal for industrial use.

Features and Benefits

Rotary cam switch
Single Pole configuration
2 positions
Marked 0 and 1
IP65 rated
Contact rating of 12 A
Voltage rating of 500Vac
Knob actuator
Class II double insulation
Operating temperature of -5 to +40°C
Short circuit protection
Pollution degree 3
Thermoplastic case
Plate dimensions of 50 x 50mm

Approvals and Standards: CE/ UKCA, EN 60947-3, UL508

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
