STR-ECS640A-GEVK, onsemi 600V BLDC Motor Control Development Kit BLDC Motor for ECS640A for NFMECS640A0

600V BLDC Motor Control Development Kit

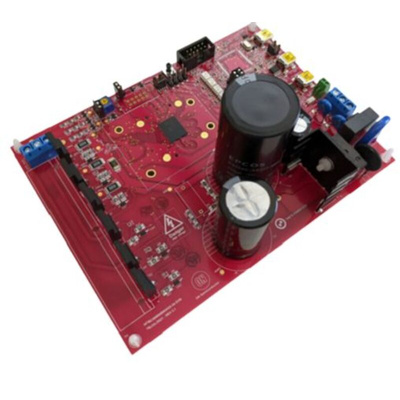

The ecoSpin TM ECS640A Motor Control Development Kit is available for customers to easily develop code for off-line variable-speed BLDC motor systems in the 50-600W range @230Vac. The Evaluation Board (EVB) can also be configured for 120Vac for up to 150W systems.
For quick spin-up and debug, the ecoSpin TM board ships with Direct Torque Flux Control software loaded onto the ecoSpin TM device and a GUI for motor/parameter/performance evaluation.
The Strata Product Developer Studio and collateral are available to allow the user to download and program sensorless trapezoidal control example libraries. A separate GUI is provided to interface to the board while running trapezoidal control of a BLDC motor. The GUI interfaces are described in further detail in the GUI User Interface Manual.

The ecoSpin TM ECS640A Motor Control Development Kit is available for customers to easily develop code for off-line variable-speed BLDC motor systems in the 50-600W range @230Vac. The Evaluation Board (EVB) can also be configured for 120Vac for up to 150W systems.
For quick spin-up and debug, the ecoSpin TM board ships with Direct Torque Flux Control software loaded onto the ecoSpin TM device and a GUI for motor/parameter/performance evaluation.
The Strata Product Developer Studio and collateral are available to allow the user to download and program sensorless trapezoidal control example libraries. A separate GUI is provided to interface to the board while running trapezoidal control of a BLDC motor. The GUI interfaces are described in further detail in the GUI User Interface Manual.

Features

• User Interface - “Easy to Use” Windows-based interface simplifies code development and reduces TTM


• Motor Connections - U,V,W outputs


• Motor Feedback - Speed sensorless with optional GPIO inputs for hall sensors


• Communications - SPI, USB*, Jlink*, I2C, UART


• Status - 3 User LEDs


• Control I/O - PWM Input, potentiometer, tactile switch


• Protection - Temp sensor input, motor over-current and under-voltage protection


• Power Input - AC connector with inrush protection and onboard fuse

Datasheet - STR-ECS640A-GEVK
