Keysight Technologies U2761A Arbitrary Waveform Generator, 20MHz Max, 1-Channel, 1 μHz Min

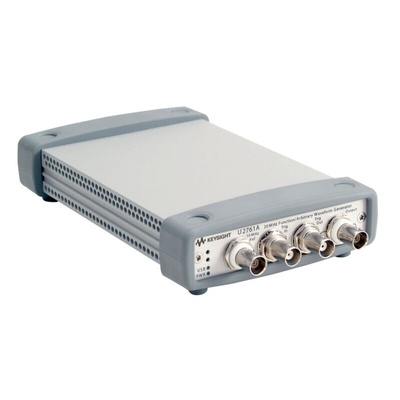

Keysight U2761A USB Modular Function/Arbitrary Waveform Generator

Modular function generator with arbitrary waveform and pulse generation capability. Can operate as a standalone or as a modular unit when used with the U2781A ( 686-2075 ) modular product chassis. Generates pulses from 500ΜHz → 5MHz with variable period, pulse width and amplitude parameters.

20MHz Sine and Square waveforms
Sine, Square, Ramp, Triangle, Pulse and DC waveforms
14-bit, 50MSa/s, 64 k-points arbitrary waveforms
AM, FM, PM, ASK, FSK, and PSK modulation types
40mVpp → 5Vpp amplitude range (into 50Ω load)
Easy-to-use bundled software

Supplied with

12V, 2A AC/DC power adaptor, power cord, USB Standard A to Mini-B interface cable, L-mount kit (for use with modular product chassis "('686-2075')""">686-2075), Automation-Ready CD-ROM, USB Modular Products Quick Start Guide, Reference CD-ROM and Quick Reference Card, Certificate of Calibration

The Keysight Technologies USB modular function/arbitrary waveform generator with direct digital synthesis waveform generator. Pulse generator that can generate pulse signal as stimulus.

Easy customization with arbitrary waveform editor
Internal modulation capability simplifies test setup

Datasheet - U2761A
