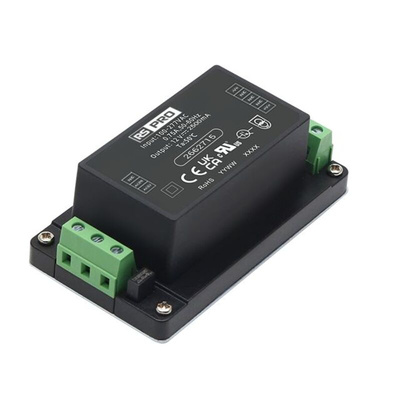

RS PRO Switching Power Supply, 12V dc, 2.5A, 30W, 8 Output, 85 → 305 V ac/ 100 → 430V dc Input Voltage

RS PRO Chassis Mount Switch Mode Power Supply, 30W, +12 Vdc

A compact and highly efficient chassis mount AC-DC power supply suitable for industrial, consumer and telecom applications.
Designed with safety in mind the switch mode power supply features a Class II safety rating featuring a double layer of insulation against electrical shocks compared to relying on grounding. On top of this the power supply features high levels of EMI (Electro Magnetic Interference) protection creating a safe consistent and reliable switching power supply suitable for sensitive areas.
Constructed from tough flame retardant and heat resistant plastic and metal with a UL94V-0 rating dictating that the power supply with not burn for a period of more than 10 seconds protecting equipment and premises in the case of fire.
A truly safe and efficient switching power supply suitable for a wide variety of applications and perfect for use in industrial control systems, instrumentation and electrical equipment.

Features and Benefits

AC-DC Universal Switch Mode Power Supply
Input Voltage of 85 - 305Vac / 100 - 430Vdc
Output Voltage of +12V DC
Output Wattage 30W
Output Current 2.5A
Efficiency of 90%
Capacitive Load 4400
MTBF >500,000 hours
Safety Class II
No load consumption of <0.1W
Excellent EMC
Flame retardant to UL94V-0
Operating temperature range of -40℃ to +85℃
Dimensions of 96.10 x 54 x 32.50mm

Standards and Approvals: IEC/EN/UL62368-1/EN60335-1/EN61558-1, CLASS B limits of CISPR32 / EN55032/ EN55014.
