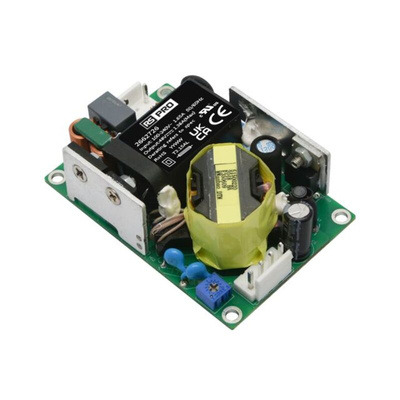

RS PRO Switching Power Supply, 48V dc, 1.36A, 65W, 7 Output, 85 → 264V ac Input Voltage

RS PRO Embedded Medical Switch Mode Power Supply, 65W, 48 Vdc

A compact and efficient embedded medical power supply suitable for AC and DC systems and featuring a low profile industry standard 2 x 3in footprint and suitable for all BF type medical equipment.
Designed with safety in mind the embedded power supply features a Class II safety rating featuring a double layer of insulation against electrical shocks compared to relying on grounding. On top of this the power supply features reinforced insolation protection from EMI (Electro Magnetic Interference), short circuit, overcurrent and over-voltage protection creating a safe consistent and reliable switching power supply suitable for sensitive areas.
widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, medical.
A safe and efficient switching power supply suitable for a wide variety of applications including LED, street light control, electricity, security, telecommunications, smart home, medical and industrial control systems.

Features and Benefits

AC-DC Universal Switch Mode Power Supply
Input Voltage of 85 – 264Vac / 100 - 370Vdc
Output Voltage of 48V DC
Output Wattage 65W
Output Current 1.36A
Efficiency of 91%
MTBF >300,000 hours
Extremely low leakage current<75uA
Stand-by power consumption<0.3W
Excellent EMC
Operating temperature range of -40℃ to +85℃
Dimensions of 76.2 x 50.8 x 26.5mm
Weight of 95g

Standards and Approvals: UL/IEC/EN/ES60601, UL/EN/IEC62368, IEC/EN60335, IEC/EN61558, GB4943, MOPP
