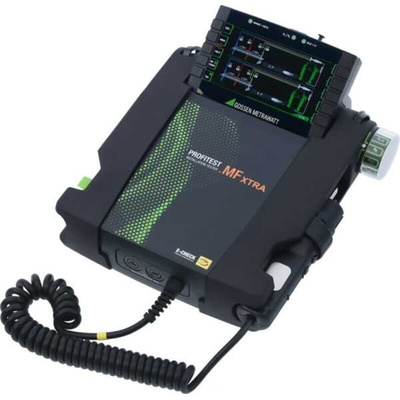

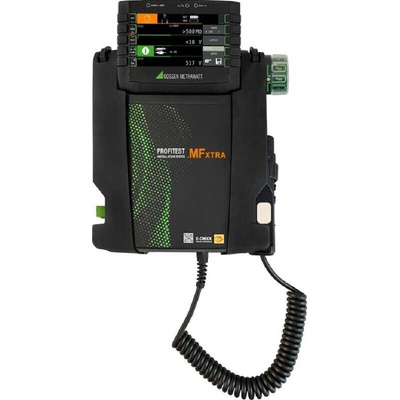

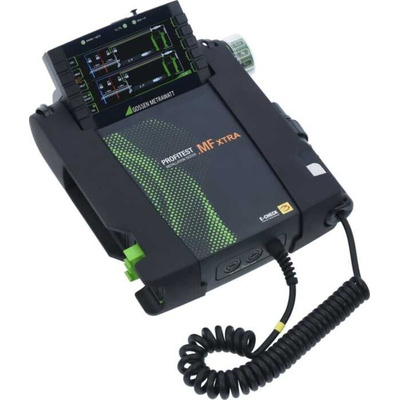

M535H, Gossen Metrawatt PROFiTEST MF XTRA Multifunction Tester, 600V , Earth Resistance Measurement With USB

PROFiTEST MF XTRA

PROFITEST MF XTRA is a professional electrical tester designed to aid electricians in conducting thorough and efficient testing of stationary electrical installations. It provides a comprehensive suite of measuring and testing functionalities to evaluate the effectiveness of protective measures and ensure the safety of electrical systems.

Key features of PROFITEST MF XTRA include:

Predefined and Programmable Test Sequences: The tester offers a range of predefined test sequences based on IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100) standards, ensuring compliance with industry regulations. Additionally, it allows for programming custom test sequences to tailor testing to specific installation requirements.

Comprehensive Measuring Capabilities: PROFITEST MF XTRA boasts a wide range of measuring functions, encompassing voltage, current, resistance, continuity, insulation resistance, leakage current, earth fault loop impedance, and ground resistance. This extensive coverage enables electricians to thoroughly assess the overall condition of an electrical installation.

Simplified Testing and Data Management: The tester employs an intuitive user interface and a comprehensive memory concept to simplify test procedures and data management. Test logs can be easily created and stored for future reference, enhancing traceability and compliance with regulatory standards.

Portable and Lightweight Design: PROFITEST MF XTRA is designed for portability and ease of use, featuring a compact and lightweight form factor. This allows electricians to conveniently carry and operate the tester during inspections and testing activities.

Compatibility and Expandability: The tester seamlessly integrates with other PROFITEST devices, allowing for data exchange and centralized management of testing records. Additionally, it supports various accessories to cater to specific testing needs.

Measuring category: 300 V CAT IV / 600 V CAT III.

M535H PROFiTEST MF Series - Datasheet
