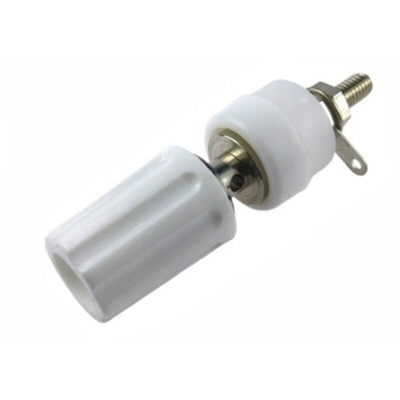

RS PRO 2mm White Terminal Post, 60V dc, 15A, 4BA Thread

RS PRO 4 mm, White, Single Terminal Post / Binding Post, 15 A, 4BA Thread

From RS PRO this is our range of professional Single Terminal posts, also known as Terminal Binding Posts and are used in various applications. Terminal biding posts are normally used as a connector to either terminate or attach a single wire or test lead. They are a necessary and important piece of equipment used in consumer audio, test and measurement, power supplies with many industrial uses. All the mounting hardware and terminal spindles are made from solid brass with Nickel contact plating complete with polypropylene and nylon insulation.

The RS PRO terminal binding posts are supplied ready assembled, are offered packs of 5 x Terminal Binding Posts plus are available various identifiable colours – Black, Green, Red, White, Brown, and Yellow. The colour of the terminal biding post allows you to identify the terminal’s purpose, for example, red would mean active or positive terminal, black would identify a negative terminal, and green could identify an earth terminal.

Features & Benefits

• Terminal binding post


• Standard 4 mm


• White


• 4BA Thread (3.6 mm)


• Thread length 18.7 mm


• Cross hole diameter 2 mm


• 15 A current rating


• Voltage rating 30 V rms or 60 V dc


• RoHS Approved

Applications

• Professional and consumer Audio


• Test and measurement


• Power supplies


• Industrial

Terminal Binding Post Colours Available

• Black, stock number 2664929, 4BA, 4mm, 15 A


• Green, stock number 2664930, 4BA, 4 mm, 15 A


• Red, stock number 2664931, 4BA, 4 mm, 15 A


• White, stock number 2664932, 4BA, 4 mm, 15 A


• Brown, stock number 2664933, 4BA, 4 mm, 15 A


• Yellow, stock number 2664934, 4BA, 4 mm, 15 A

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
