RS PRO Logic Controller for Use with RS PRO PLC Expansion Modules, 85 → 265 Vac Supply, Relay Output, 36-Input,

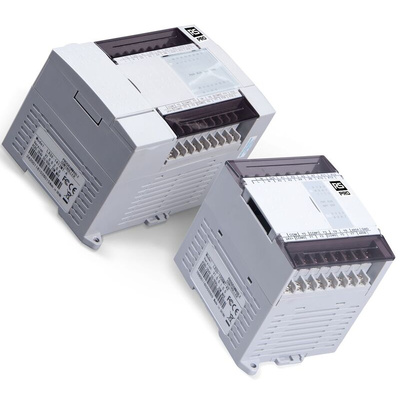

RS PRO 36 Input/ 24 Output High Speed Programmable Logic Controller with Relay Output (PLC)

A high-speed Programmable Logic Controller (PLC) with relay output designed for the control of a wide variety of electro-mechanical processes and industrial automation and control systems.
With 36 inputs and 24 outputs the industrial PLC is easy to program with high-speed counter interrupts and execution speeds of 0.01 to 0.03 microseconds for unrivalled efficiency. The large memory capacity of 48000 steps offers complete control over complex systems and the maximum baud rate of 921600 allows instant connectivity and interaction between multiple components.
The high-speed PLC features both cyclical scan and interrupt running modes with instruction list and ladder programming for up to 29 basic instructions and 170 application instructions. Supporting PID (Proportional-Integral-Derivative), CCPID auto-tuning and E-CAM (Electronic Cam) the PLC orchestrates the self-adjustment and fine tuning of systems ensuring consistency and productivity.

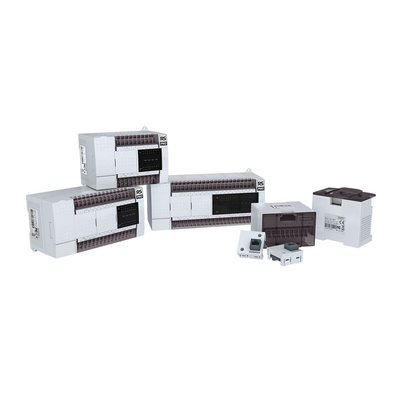

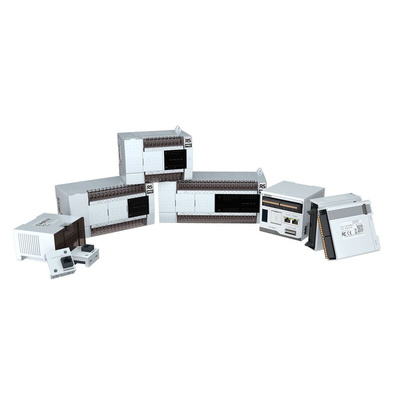

Featuring standard connection through a micro USB or serial cable via the COM1 or COM2 serial ports the PLC features an array of available I/O extension modules (Input/Output) and function expansion modules allowing the bespoke creation of new or the expansion of existing systems.
Supplied with an available free software download the RS PRO Programmable Logic Controllers are fast, consistent, hardwearing and reliable and with its high-speed capabilities these PLC’s are ideal for packaging machinery, automated production lines, industrial robotics and textile operations.
For a full list of all PLC’s, expansion module and accessories in this series please see the attached RS PRO datasheet.

Features and Benefits

High speed PLC
Relay output
Supply voltage of 85 – 265Vac
Current rating of 2A @ 250Vac
36 inputs/ 24 outputs (I/O)
Supports 35mm DIN rail
Cyclical scan and interrupt modes
Instruction list / ladder programming
Basic instructions 29/ application instructions 170
Programmable storage of 512KB
Minimum Interrupt time 0.1mS
High speed I/P signal of 6 x 150KHz
3 x 100KHz supports 2 or 4 frequency multiplication
48000 step capacity
Supports E-CAM, CCPID and PID
Serial Port COM1: RS422/RS 485, COM2: RS 485
Suitable for use with HMIs
Working temperature range of 0 - 55°C
Total Dimensions of 221 x 107 x 87 mm

Standards and Approvals: FCC IEC61000-4-4, GB/T 17626.4, JIS0040, UKCA, CE, REACH, RoHS

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4
