05074746001, Wera Adjustable Hex, Square Torque Screwdriver, 3.0 → 8.8Nm

7443/12 Assembly set for tyre pressure control systems, 12 pieces

The Wera 12-piece tool set for the proper assembly and disassembly of tyre pressure control systems. Comes with torque technology for controlled screw tightening. Hand tool with multi-component Kraftform handle for high working speeds and ergonomic working. Five pre-set tools to connect the union nut with the screw and to fasten the sensor component to the valve. Two pre-set valve insertion tools with 0.25 and 0.45 Nm. An adjustable Kraftform pistol handle for torque values of between 4.0 and 8.8 Nm. Suitable for all customary tyre pressure control systems. Dependable fastening thanks to distinctly colored marking of the pre-set torque values (Beru/Huff® TX 10 yellow 1.25 Nm
Schrader® TX 10 green 1.4 Nm
Cup®/RTS® TX 20 grey 2.0 Nm). Two TX bits with holding function, socket adaptor, two sockets plus a valve dolly (for Application:s up to 4.5 Nm). Suitable for tyre control, systems from e.g. Schrader®, Alligator®, VDO®.

Assembly set for tyre pressure control systems
To monitor the tyre pressure on motor vehicles
Optimum tyre pressure saves fuel and prevents tyre wear
Pre-set torque for optimum fixing of the sensors

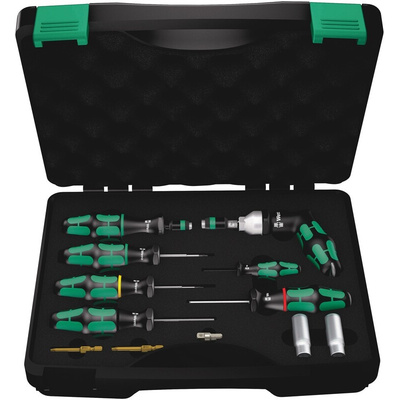

12-piece set in a stable plastic case

Application:

Suitable for all leading system suppliers such as Alligator, Beru, CUB, Herth & Buss, Schrader, VDO/Conti. 1 adjustable torque screwdriver, pistol handle, 4.0-8.8 Nm
1 pre-set torque screwdriver 3.3 Nm 1 pre-set torque screwdriver 1.4 Nm TX 10
1 pre-set torque screwdriver 1.25 Nm TX 10
1 valve dolly
1 bit 867/4 HF TX 15 x 50 mm, with holding function for TORX® screws 1 bit 867/4 HF TX 20 x 50 mm, with holding function for TORX® screws
1 socket 790 A/50 SW 11.0 x 50 mm 1 socket 790 A/50 SW 12.0 x 50 mm
1 adaptor 870/1
" hexagon to " square
1 valve insertion tool, pre-set torque 0.25 Nm
1 valve insertion tool, pre-set torque 0.45 Nm. Practically arranged in a robust foam insert.

Datasheet - 05074746001
