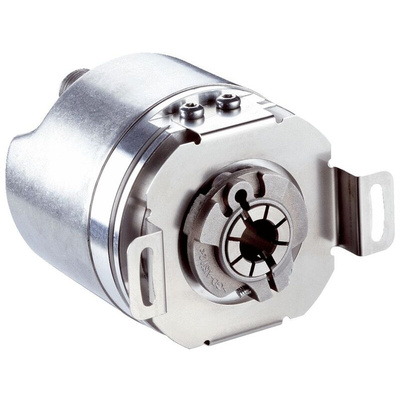

A3M60A-BBPB014x17, Sick A3M60 Series Absolute Absolute Encoder, PROFIBUS Signal, Blind Hollow Type, 8mm Shaft

Overview

The A3M60 is an extremely rugged absolute multitier encoder inside a 60 mm housing. Maximum reliability even in the harshest of ambient conditions is attained by means of magnetic scanning, both with single turn and multitier detection. New single turn technology combines the durability of a magnetic sensor with high resolutions, previously only possible with optical systems. The innovative, gearless multitier technology keeps the number of moving components on the A3M60 to a minimum. This results in a long service life with low maintenance costs and consequently optimum system availability.

The highly compact technology in single and multitier detection provides the user a space-saving and cost-efficient solution. Together with the integrated PROFIBUS interface, the A3M60 is particularly suited for applications where installation space is tight.

At a glance

Rugged absolute multitier encoder with up to 31 bits (14-bit single turn and 17-bit multitier)
Face mount flange, servo flange or blind hollow shaft
Compact design (<70 mm)
Integrated PROFIBUS interface with DP V0, V1, and V2 functionality (depending on type)
Connectivity: 3 x M12 male connector
Protection class up to IP67
Operating temperature: –30 to +80 °C (depending on type)

Your Benefit

Maximum system throughput, even under extreme ambient conditions
Reduced maintenance costs due to wear-free magnetic single turn and multitier scanning
Space-saving and cost-efficient design - the best solution, particularly when installation space is limited
High productivity thanks to fast communication and position calculation
Immune to contamination and condensation - ideal for tough ambient conditions
High performance at a cost-efficient price

Applications

Measurement of absolute position in various machines and systems such as palletizers, high-bay warehouses, cranes, presses,
printing machines

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - A3M60A-BBPB014x17
