DFV60E-22EC01024, Sick DBV60 Series Measuring Encoder, 1024ppr ppr, HTL/Push Pull Signal

Overview

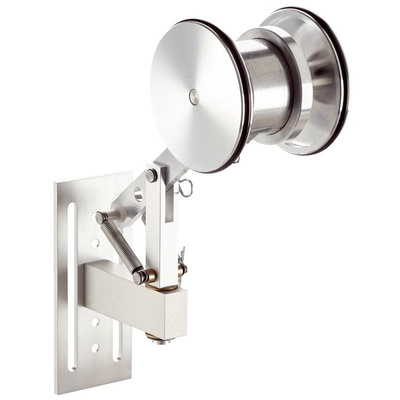

The DFV60 high-resolution measuring wheel encoder is an extremely robust solution for determining position and speed directly on the conveyor belt, even in applications where the measuring surface is subject to high levels of vibrations. The DFV60 consists of an incremental encoder with a mounting arm and two measuring wheels. The spring arm is available as an accessory.

Extensive programmability of output signal, zero pulse and lines counts from 1 to 65,536 enable customer-specific adaptations.

At a glance

Universal use, rotatable spring arm
Wheel circumference 300 mm with O-ring made from NBR70
Mounting arm and measuring wheels made from aluminium
Programmable output voltage, zero pulse position, zero impulse width and pulse count.
Connection: M12 radial plug-in connection or radial or axial cable connection
Electrical interfaces: 5V & 24V TTL/RS-422, 24 VHTL/push pull
Remote zero set possible

Your Benefit

The universally-applicable spring arm enables quick and easy mounting
The high spring tension means it can be used in applications with harsh ambient conditions
Reduced storage costs and downtime due to programmability
Plug-in cable connection in radial or axial direction enables customer-specific cable solutions
Excellent concentricity even at high speeds
Long-term and reliable operation thanks to a high enclosure rating, temperature resistance and bearing lifetime
The ability to program using the PGT-08 programming software and the PGT-10-S display programming device enables fast and
flexible adaptation of the encoder to customer requirements
Programmable zero pulse position simplifies installation

Applications

Measurement of position and speed directly on conveyor belts in wood processing machines, steel and metal processing machines, handling and warehouse systems, sorting systems and conveyor belts, textile machines, printing and paper machines

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - DFV60E-22EC01024
