DKV60E-22EKA1000, Sick DBV60 Series Measuring Encoder, 1000ppr ppr, HTL/Push Pull Signal

Overview

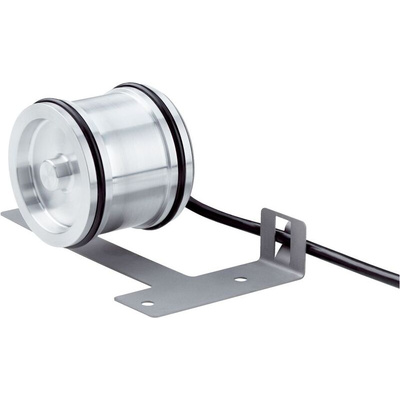

The compact DKV60 measuring wheel encoder is a cost-effective way to determine position and speed directly on the conveyor belt or rollers. The DKV60 consists of an incremental encoder, measuring roller, mounting plate and cable guide and is delivered fully assembled.

2 different measuring wheel surfaces enable adaptation to the measuring surface.

At a glance

Complete pre-assembled measurement system
Measuring wheel with knurl or O-ring for adjusting to the measuring surface
Mounting bracket made of stainless spring steel
High resolution up to 0.1 mm (1 … 2,000 pulses/revolution)
Electrical interfaces: Open Collector NPN, TTL/RS-422 or HTL/push pull.
Connection via cable connection, can be used radially or axially with free cable ends or assembled with M12 male connector

Your Benefit

Complete system with universal mounting bracket and integrated cable guide enables quick and simple mounting
Mounting bracket made of spring steel allows for high measurement accuracy with deflection of the measuring wheel in X and Y
direction
Low-cost encoder with excellent quality
High IP protection class, non-rusting mounting bracket and rugged encoder make the device suitable for use in harsh ambient
conditions
Compact dimensions allow for easy installation, even in confined spaces

Applications

Measurement of position and speed directly on conveyor belts in wood processing machines, steel and metal processing machines, handling and warehouse systems, sorting systems and conveyor belts, textile machines, printing and paper

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - DKV60E-22EKA1000
