DUV60E-D4KCJAAA, Sick DBV60 Series Measuring Encoder, 2400ppr ppr, TTL/HTL Signal

Overview

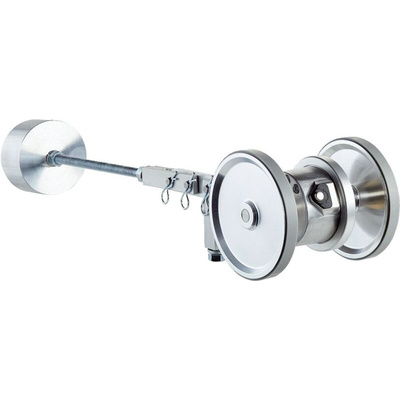

The DUV60 is a measuring wheel encoder with DIP switch configuration, designed to be optimized for conveyor and web feedback. The ability to configure the output voltage, resolution, and counting direction reduces the number of variants, enables easy replacement and quick commissioning, and increases the likelihood that spare parts will be in stock – all without any additional programming tools. The on-board status and signal LEDs and optional fault output quickly indicate the functionality of the encoder, minimizing time required for both installation and troubleshooting.

The DUV60 offers a range of mounting configurations for dual or single wheel applications, making the DUV60 the ideal solution for conveyor, web, and logistics applications.

At a glance

Single or dual wheel measuring wheel encoder
DIP switches for programming resolution, signal output,
And counting direction
Universal 4.5 V ... 30 V supply
LEDs that indicate encoder status and output signal.
M12 male connector, 4- or 8-pin, or universal cable outlet
Optional fault output directly from encoder

Your Benefit

Quickly commission the encoder using the built-in DIP switches. No additional programming tool or laptop required
Status and signal LEDs quickly indicate whether the encoder is properly connected, functional, or needs to be replaced
Universal voltage supply and multiple bracket options for the measuring wheel encoder provide increased installation flexibility
Maintain a high level of productivity using the anti-dither functionality
Compatible with existing and low-cost input cards with output types like Clockwise/Counter clockwise and Signal/Direction

Applications

Measuring the position, speed and distance in applications with low speeds and low resolution in the logistics and factory automation markets.
Conveyor belts
Packaging machines
Printing machines
Storage systems
Web tracking applications

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - DUV60E-D4KCJAAA
