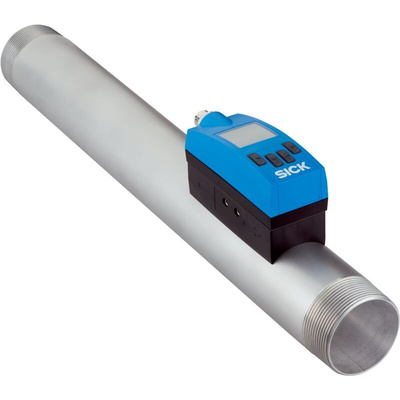

FTMG-ISR50SXX, Sick FTMG Series Flow Sensor, 58.9 L/min Min, 11780.9 L/min Max

Overview

The FTMg energy consumption flow meter measures gas flow and temperature as well as the process pressure, making it a cost saving multi-talent. With high measurement dynamics and low pressure loss, it measures non-corrosive gases with extreme efficiency. The contrast-rich color display enables easy operation of the FTMg and allows for representation of several measured values as a process diagram. Internal data logging over seven days and integrated static evaluation help detect even the smallest leaks in a pneumatic system.

PoE also enables simple web-based connection to a PC or a cloud to make energy consumption more transparent. All measurement data can be transmitted via IO-Link or with switching and analogue signals.

At a glance

Measures compressed air and non-corrosive gases such as argon, helium, carbon dioxide and nitrogen
Visualization of compressed air consumption via the FTMg monitoring app from SICK
Measurement of gas flow and temperature as well as process pressure and energy consumption with only one sensor
Low pressure loss
High measurement dynamics for cylinder and leakage monitoring

Your Benefit

Transparent compressed air consumption measurement according to DIN EN 50001
Complete overview of the flow, pressure and temperature of gases increases system reliability
IO-Link or Ethernet interfaces (communication with OPC UA) for simple system integration and data availability
Cost savings thanks to reduced energy consumption and increase in production efficiency
Intuitive configuration with large, contrast-rich OLED display saves time and money during commissioning
Only one installation and commissioning process for the collection of flow, pressure and temperature data

Applications

Consumption and leakage monitoring in compressed air systems
Monitoring of the energy consumption of compressed air in the supply network
Measurement of inert gases in packaging with modified atmospheres in the food and beverage industry
Flow measurement of non-corrosive gases such as Ar, He, CO2, N2

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
