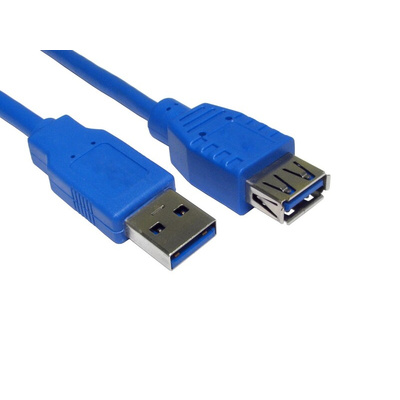

RS PRO USB 3.0 Cable, Male USB A to Female USB A Cable, 3m

RS PRO USB 3.0 Male Type A to USB Female Type A USB Cable Male to Female 3 Metres

From RS PRO this is a reliable, high quality USB cable terminated at one end with a 3.0 male Type A connector and the other end being a female Type A connector. The USB cable supports USB 3.0 protocol standard that allows for super speed data transfer up to 5 Gpbs. Using this USB cable allows you to increase the length required connecting with other USB 3.0 USB cables while still providing data transfer ten times faster than USB 2.0 technology.

Features & Benefits

• USB Male Type A to USB Female Type A Blue PVC Cable


• Male to female connectors


• 3 m long


• USB 3.0 Super speed with a transfer rate of 4 Gbps


• Protected with aluminium braid foil shielding


• USB cable outer dimeter of 4 mm, 24 AWG


• Nickel connector plating with copper pins


• 5 A Maximum power


• Standards met CE, UKCA, ROHS, REACH

Pack Size

Supplied in packs of 5 - For packs of 1 see RS PRO 1828840

What is a USB Type A Connector?

The USB connector type is determined by its shape. A Type A connector is the most common type with a flat and rectangular shape. The plug connector is found on one end of computer peripheral cables such as mice, keyboards and printers and is also built into memory sticks. The plug on the cable connects to a type A female port or receptacle on a host device such as a desktop computer, laptop, netbook, or tablet. Type A connectors are supported in all USB versions, including 1.1, 2.0 and 3.0 as the shape is the same, for instance, a version 2.0 plug will mate with a version 1.1 and 3.0 port.

What is a USB Type B Connector?

The USB connector type is square with a slight rounding or square protrusion on the top of it. This connector is commonly found on one end of computer peripheral cables for larger devices such as scanners or printers and is also built into memory sticks. The plug on the cable connects to a type B female port or receptacle in the device. Version 2.0 and version 1.1 USB type B connectors have the same shape so a version 1.1 plug will mate with a version 2.0 port. A Version 3.0 plug, however, is only compatible with a Version 3.0 receptacle

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
