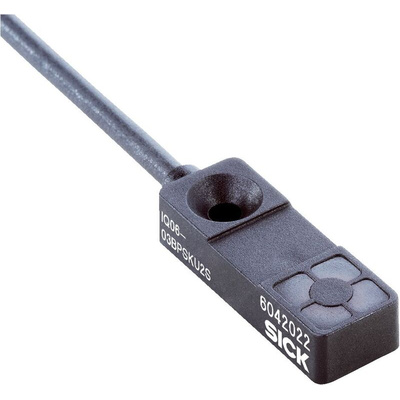

IQ06-03BPOKU5S, Sick IQ06 Series Inductive Rectangular-Style Inductive Proximity Sensor, 3 mm Detection, NPN Output, 30 V dc, IP67

Overview

The IQM sensors with their rectangular miniature designs are real space-savers. Thanks to the low heights of a minimum of4.7 mm and fully-integrated electronics, they set new standards and contribute to the miniaturization of modules and machines. Extended sensing ranges of up to 3 mm enable reliable position queries even in challenging applications.

The IQM sensors can be permanently installed quickly with only one screw.

At a glance

Types: 8 mm x 16 mm x 4 mm or 10 mm x 30 mm x 6 mm
Extended sensing ranges: 1.5 mm to 3 mm
Electrical configuration: DC 3-wire
Enclosure rating: IP 67
Temperature range: –20 °C to +70 °C
Plastic housing
Flat, space-saving and light design

Your Benefit

Easy installation in applications with limited available space
Reliable detection of fast handling and mounting processes
High positioning accuracy and precise switching behaviour
Great freedom with respect to machine design thanks to the lower height
Low weight enables fast acceleration in dynamic handling processes
Quick and reliable mounting with just one screw

Applications

Component detection in the robot gripper
Tool monitoring (in-die sensing)
Monitoring of the maintenance flap
Telescopic arm and finger positioning

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IQ06-03BPOKU5S
