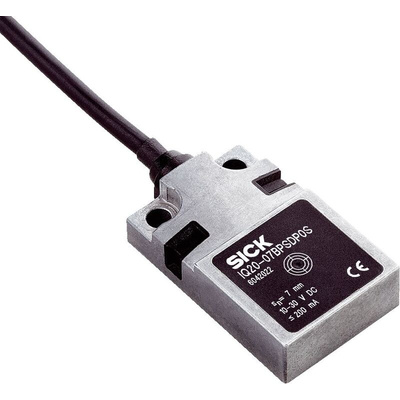

IQ20-07BPPDU5S, Sick IQV Series Inductive Rectangular-Style Inductive Proximity Sensor, 7 mm Detection, PNP Output, 10 → 30 V

Overview

When space is tight, the flat design of the IQV sensors are the best choice. Thanks to a low height, they can be easily integrated into applications where space is critical and allow a high degree of freedom when it comes to machine design. Greater sensing ranges of up to 7 mm simplify even the trickiest of detection tasks.

Not only the robust metal housing, but also the high tightening torque make flat designs the favorited of installers.

At a glance

Types: 20 mm x 32 mm x 8 mm or 25 mm x 50 mm x 10 mm
Extended sensing ranges: 5 mm to 7 mm
Electrical configuration: DC 3-/4-wire
Enclosure rating: IP 67
Temperature range: –25 °C to +70 °C
Metal housing, plastic sensing face
Flat housing made of robust metal

Your Benefit

Extremely stable and durable
For applications with limited space
No restrictions on machine design
Flat housing provides a high degree of design freedom
Reliable mounting with high tightening torque

Applications

Component detection in the robot gripper
Tool monitoring (in-die sensing)
Monitoring of the maintenance flap
Telescopic arm and finger positioning

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
