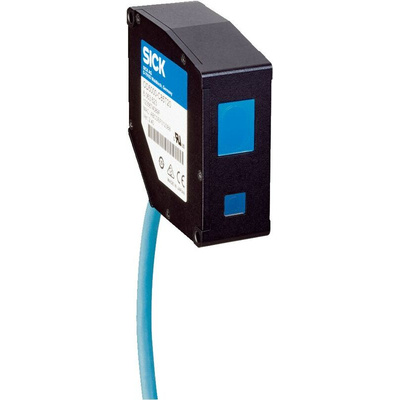

OD5000-C85W20, Sick Distance Photoelectric Sensor, Rectangular Sensor, 105 mm Detection Range TCP

Overview

The OD5000 displacement measurement sensor specializes in high-precision measuring tasks, offering solutions in a wide range of applications. With a measuring frequency of up to 80 kHz, the OD5000 also measures quick and rotating measuring objects withμm-precision. The innovative analysis algorithm allows stable measurements with the highest level of repeatability on a wide range of surfaces.

The OD5000 measures the thickness of transparent material with minimal effort with just a sensor head. The Ethernet interface integrated directly in the sensor head ensures quick communication and therefore maximum productivity.

At a glance

Measuring frequency up to 80 kHz
Ethernet interface with TCP/IP protocol directly in the sensor head
Web server interface for configuration
Innovative analysis algorithm
Maximum repeatability for positioning tasks
Detection and measurement of the smallest indentations or holes

Your Benefit

Very good measurement performance, even with quick or rotating objects thanks to high measuring frequency
Simple and cost-effective solution with Ethernet interface and evaluation unit integrated directly in the sensor head
Sensor is easy to configure via a web server interface
Reliable edge detection thanks to innovative analysis algorithm
Increase in product quality due to maximum repeatability
Reliable detection, even of very small indentations, thanks to precise light spot

Applications

Glass thickness measurement with just one sensor head
Measurement of quick and rotating objects
Precise height positioning
Quality control while process in underway

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - OD5000-C85W20
