OD5-350W100, Sick Distance Distance Sensor, Block Sensor, 20 → 50 mm Detection Range

Overview

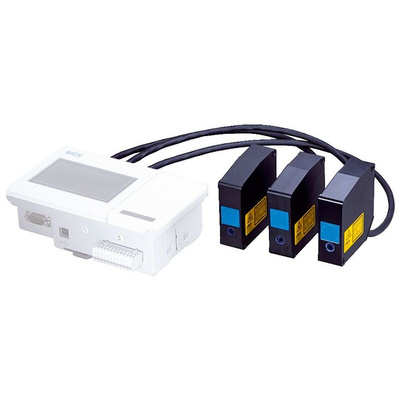

The OD Precision is a high accuracy, optical measuring system for measuring difficult object surfaces. In addition to glossy and dark black surfaces, it can also measure transparent and semi-transparent materials. The OD Precision is the only displacement measurement sensor that can connect three sensors to one controller, which reduces the amount of hardware required and make sit easier to measure the x-, y- and z-axes., e.g. for measuring the evenness of surfaces.

In order to reduce investment costs, the sensor can also be operated via RS-422, thus eliminating the need for a controller unit.

At a glance

Numerous measuring ranges from 24 mm ... 26 mm to 300 mm ... 700 mm
CMOS receiving element for measurement independent of surface
Maximum measurement accuracy and frequency
Glass thickness measurement with just one sensor head
Various light spot sizes
Integrated calculations for up to three sensors
Stand-alone use via RS-422

Your Benefit

Non-contact measurement improves quality inspection during production
Surface-independent measurement algorithms ensure minimum machine downtime, regardless of surface gloss or color
Reduced processing times as a result of the high measuring frequency of up to 10 kHz
Simple, cost-effective solution for challenging measuring tasks due to a variety of sensor models
Optional stand-alone operation via RS-422 means the OD Precision offers maximum performance at lower investment costs
High visibility LC display enables simple, cost-effective setup
Many interfaces for simple integration into an existing production environment

Applications

Double sheet control during sheet feeding
Precise component measurement
Regulating the calendaring process
Inspecting the tire geometry
Non-contact double sheet monitoring
Precise component measurement
Inline quality control for plastic plates
Glass thickness measurement with just one sensor head
Measuring display mounting with micrometre accuracy
Silicon ingot diameter measurement
Saw mark inspection on solar wafers
Easy alignment and positioning of solar cells
Height monitoring of solar cells for quality control
Detection, measurement, and positioning of the solar glass substrate
Safe handling of thin glass substrates
Electrode coating thickness measurements
Measuring train wheels and rail profiles
Continuous control of thickness of steel plate and steel sheeting

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - OD5-350W100
