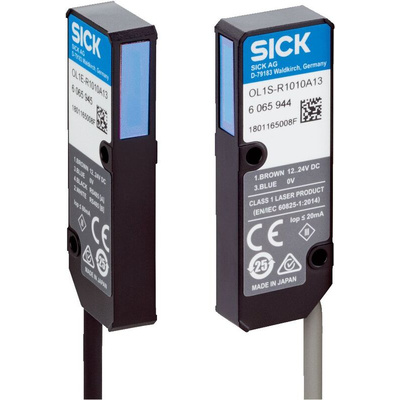

OL1S/OL1E-R1010A13, Sick Distance Distance Sensor, Block Sensor, 10 mm Detection Range

Overview

The OL1 optical micrometre stands out due to its miniature design and is small enough to fit in the tiniest machine spaces. Thanks to the LED alignment aid and a function for aligning the light band integrated into the AOD1 evaluation unit, installing and aligning the sender and receiver unit is child’s play. In particular, the OL1 sensor shows its strengths with the high-precision edge guiding function, for instance with the repeatable guidance of electrode material in battery production or the double layer detection of thin wafers.

Due to the high performance reserve, the OL1 determines the edge position of semi-transparent materials exactly or reliably moves thin textile threads or wires back on the right track.

At a glance

Miniature metal housing
Integrated LED alignment aid
High-resolution CMOS receiver with high repeatability
Various interfaces available via AOD1 evaluation unit
Measurement of edge position or diameter
Individualized configuration settings and calculation functions via AOD1 evaluation unit

Your Benefit

The rugged miniature housing makes it possible to use it in very small installation spaces
Quick commissioning and easy machine integration via display configuration and LED-based alignment aid at the sensor heads
Quality optimization due to thickness measurement with micrometre precision
Reliable process control of web material thanks to exact edge position determination

Applications

Edge control of battery electrodes
Diameter and position monitoring of threads or wires
Double layer detection when handling wafers
Guidance of semi-transparent films
Measurement of through holes in engine components
Thickness measurement of films or textile web materials in calendaring processes

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - OL1S/OL1E-R1010A13
