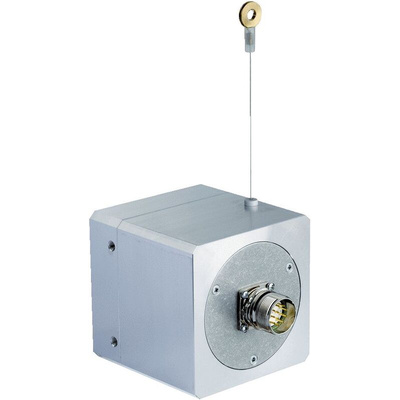

PKS09-ATBM0520, Sick PFG09 Series Incremental Draw Wire Encoder, RS422, TTL Signal

Overview

In the Compact family, the encoder is integrated into the wire draw mechanism. This integration provides the encoder with the best possible protection in harsh industrial environments.

These encoders have a measuring range of up to 5 m with high resolution, plus incremental or absolute output.

At a glance

Measuring lengths from 2 m ... 5 m
Integrated measuring system
Compact housing (90 mm x 90 mm x 90 mm)
Incremental and absolute versions
High resolution

Your Benefit

Industrial designed encoder integrated in an aluminium housing makes it less susceptible to external damage, saving time and
reducing maintenance costs
Extremely precise measurements by eliminating the coupling between the encoder and the mechanism
Space-saving installation, since the encoder is directly integrated into the wire draw mechanics.
Very precise measurements thanks to its high resolution

Applications

Automated guided systems (fork height)
Fork lift trucks
Storage and rack operation equipment
Wood processing machines
Lifting platforms

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - PKS09-ATBM0520
