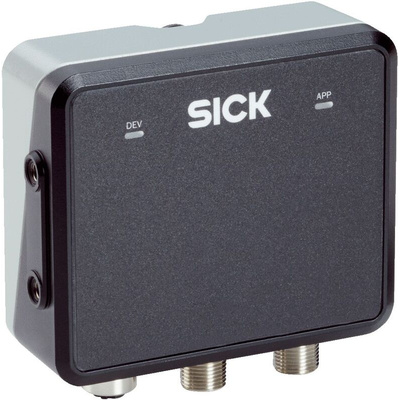

RMS1731C-636111, Sick RMS1000 Series Radar Rectangular-Style Measuring Sensor, 100 m Detection, Digital Output, 9 → 32 V dc,

Overview

The RMS1000 radar sensor is designed to detect obstacles, even in the most adverse ambient conditions. Even in heavy rain or snowfall, dense fog and in very dusty environments, it detects objects reliably. Within its working range, it allows flexible adjustment of monitored areas and, in addition to a radial object distance, it can also output a radial object speed – and all this for several objects at a time.

The ability to adjust the aperture angle and the range of interfaces offer enormous flexibility and adaptability tom any different applications, making the RMS1000 an indispensable component for the most demanding applications.

At a glance

Radar technology for highest outdoor capability
Rugged aluminium housing without moving parts
Adjustable horizontal aperture angle
Large working range for diverse applications
Parameterization via web browser
High-pressure cleaning possible
State-of-the-art FMCW radar technology
Digital I/Os and additional data interfaces

Your Benefit

Reliable detection in the most difficult visibility and ambient conditions, such as heavy snow, rain, dense fog or dust
Durable and very resistant to shock and vibration
Highest flexibility and simple parameterization
Quick and easy cleaning
Simultaneous determination of radial distance and speed of objects
Quick and stable signal transmission
Raw data output for further data processing or data use

Applications

Collision awareness for driver assistance, e.g. for cranes, trucks, mobile machines, manned forklift trucks
Detection of vehicles or people for automated opening of doors
Detection of ships in locks
Non-contact measurement of water level
Docking help for trucks at loading and unloading stations
Prevention of aircraft damage with belt loaders

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
