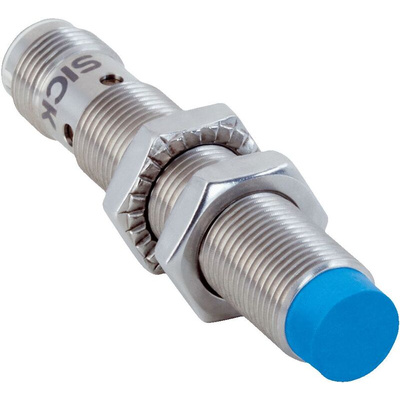

IMC12-08NPPVC0SB00, Sick IMC Series Inductive Barrel-Style Inductive Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 10 → 30

Overview

The inductive, intelligent, and, thanks to IO-Link 1.1, communication-enabled IMC proximity sensors offer a whole host of new options to make handling applications easier and more reliable in every industry. Up to four individual switching points or windows including the hysteresis can be set. Equipped with two freely programmable switching end stages, an IMC can therefore replace several conventional devices. Adjustable switch-on and switch-off delays help to reliably suppress unwanted switching pulses in harsh environments.

The additional on-board functions, such as logic modules, temperature measurement, counters, or time measurement enable complex tasks to be completed with ease directly in the sensor.

At a glance

Types: M8 to M30
IQ10 and IQ12
Four programmable switching points or windows at an Sn of up to 20 mm
Freely programmable output function
Enclosure rating: IP 68, IP 69K
Temperature range: –40 °C to +75 °C
Rugged stainless-steel or VISTAL housing
Logic, counter, time measurement, or temperature monitoring function
IO-Link 1.1

Your Benefit

Advanced diagnostic options ensure stable processes
Programmable switching thresholds and windows make predictive maintenance easier and reduce machine downtimes
Switching point teaching enables precise object positioning without the need for time-consuming adjustment
Reduced costs as fewer sensors or sensor variants are required
Stable signals thanks to integrated debounce function
Reduced project planning and cabling work as complex tasks are easy to implement directly in the process
Future-proof thanks to IO-Link 1.1 communication

Applications

Open and closed position on valves and grippers with just one sensor
Component wear monitoring
Distinguishing between materials in the machine tools industry
Distinguishing between objects in the handling industry
Monitoring of industrial brakes
Precise stopping in the handling industry
Quality control in mechanical production

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - IMC12-08NPPVC0SB00
