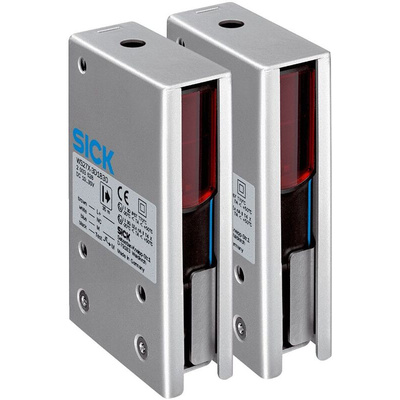

WSE27X-3P1830, Sick Through Beam Photoelectric Sensor, Compact Sensor, 35 m Detection Range

Overview

The W27 family is designed for harsh industrial environments where it copes easily with heavy vibrations, shocks and extreme temperature fluctuations. The W27-3 Ex photoelectric sensor meets category 3G/3D (ATEX) requirements for use in explosive environments. The standard also prescribes a specific mechanical stability that conventional sensors do not meet.

These sensors are enclosed in a rugged metal housing that provides users with a ready-to-install solution that complies withal its aspects. For besides limit values for temperature, performance or UV resistance.

At a glance

Label: EX II 3 G EX nA op is IIB T4 Gc X, EX II 3 D EX tc IIIB T135°C Dc IP67 X in accordance with directive 2014/34 / EU (ATEX)
Complies with category 3 D / 3 G
Standard compliant and ready to be installed: Sensor and additional protective housing (stainless steel 1.4301)
Long sensing distances with infrared LED
Long sensing ranges and high operating reserves
Operational safety in industrial environments, in ambient light, with optical reflections and when devices are mounted opposite
one another

Your Benefit

Ready-to-install sensors including rugged metal housing conform with the 3G/3D category for explosive zones (ATEX)
Resistant to ambient light, optical reflections, and immune to crosstalk from other photoelectric devices, reducing false detection
Long sensing range with high operating reserve
Resistant to vibrations, reducing downtime
Withstands harsh environments with temperatures between –20 °C – +50 °C

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WSE27X-3P1830
