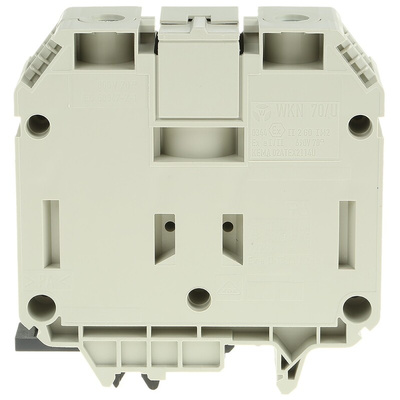

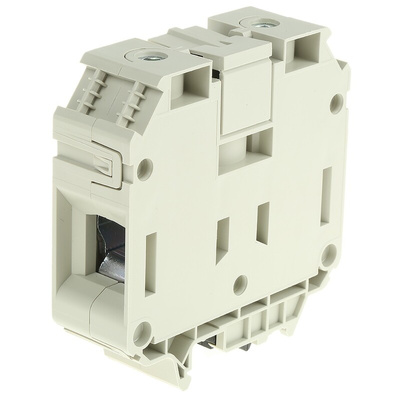

High current connections
Series of large connections for DIN rails compatible with cables measuring between 6 mm2 and 70 mm2, with a nominal current of up to 192 A.
All connections consist of a spring system designed to eliminate vibrations from the terminals.
Compatible with all types of DIN rail.
The hexagonal head bolts on the 35-mm2 connections allow for particularly high tightening torques.
All connections are protected in accordance with the requirements of standard VBG4.
The earth and feed-through connections measuring between 35 and 70 mm2 are entirely encased, negating the need for end plates.
Insulating material conforms to flammability rating UL 94-VO.
Turned brass/copper conductive bar and galvanised chrome-plated steel tightening clamps for optimal conductivity and resistance.
Approvals
UL and CSA
Approvals
UL; CSA
