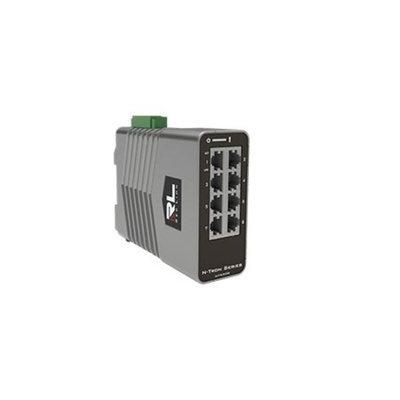

NT-5008-000-0000, Red Lion Managed 8 Port Industrial Ethernet Switch

8 Port Gigabit Layer 2 Managed Industrial Ethernet Switch

Eight 10/100/1000BaseT RJ-45 Ports

Hardware Features

Compact, space saving, hardened industrial design
Wide operating temperature
High shock and vibration tolerance
Vibration: 5Hz to 200Hz, 15g, Triaxial, IEC 68-2-6: operational, bulkhead mounted
Shock: 200g, 10ms, Triaxial, IEC 68-2-27: non-operational, bulkhead mounted
Reverse polarity protection
ESD and Surge protection
Fast boot <20 seconds
Configurable Alarm Contact
Configurable Bi-Color Fault Status LED
LED port status indicators
Jumbo frame support
Redundant Power Inputs (10-49 VDC)

Management Features

Modern, intuitive Web Interface
Configuration wizard
Graphical dashboard and logical view of the switch
Command Line Interface
Port Control
IGMP v1/v2/v3 auto-configuration
SNMP v1/v2/v3
NTP
802.1Q tag VLAN and Port VLAN
IEEE 802.1p QoS and Port QoS
DHCP Client
Text-based configuration file
File transfer: HTTP/HTTPS, TFTP, SNMP

Security Features

SSH, SSL, HTTPS
MAC Filtering
IEEE 802.1x with RADIUS remote server authentication
Port / User lock after failed authentication attempts
SNMPv3
Password encryption

Diagnostic Features

Port mirroring
Event log/Syslog
LLDP
Advanced cable diagnostics

Network Redundancy Features

RSTP/MSTP
Port trunking / LACP
N-Ring auto-member

Software tool to manage/schedule firmware upgrades
N-View™ 2

Regulatory Certifications

Product Safety: (UL/CUL) Ordinary and Hazardous locations
Emissions/Immunity: FCC/ICES/CE
ATEX/IECEx
Marine: ABS, DNV (pending)
Rail: EN 50155, EN 50121, EN 61373

Datasheet - NT-5008-000-0000
