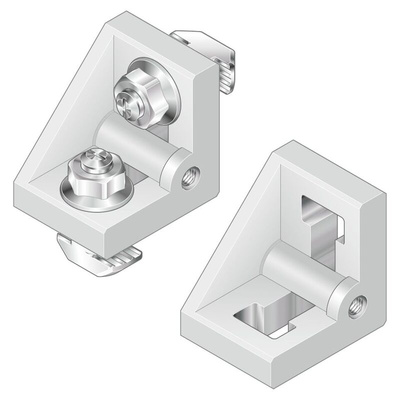

3842536489, Bosch Rexroth M6mm Angle Bracket Connecting Component, Strut Profile 20 x 20, Groove Size 6mm

Bosch Rexroth Connecting Component, Angle Bracket Type, For Mounting Surface Elements - 3842536489

Mounting a surface element on your strut profile assembly? Use this angle bracket connecting component from Bosch Rexroth and your installation will be virtually gap-free. It's made to fit a 20 x 20mm strut profile with a 6mm groove. An M6 T-nut holds it securely in place, and a retainer ring connects the screw to the surface element without damaging it. You can use this bracket to mount surface elements with a thickness of up to 13mm.

Features & Benefits

• Asymmetrical form allows you to fix surface elements in two different positions
• Can be retrofitted to closed installations
• Pack of 20 to see you through a complex build

Applications

• Loading bays
• Clean rooms
• Warehouses
• Safety enclosures

Can I use this connecting component to mount a surface element flush with the profile edge?

Yes, you can flush-mount your surface element by snapping off the centering lugs.

Datasheet - 3842536489
