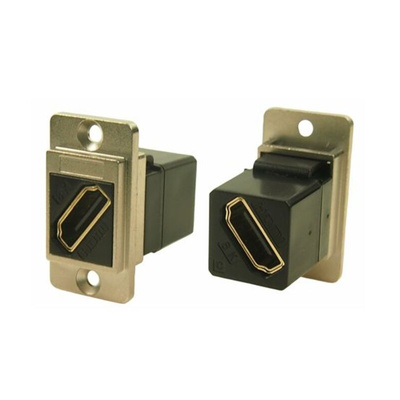

RS PRO 29 mm x 35.5 mm x 19 mm 1 Way Female to Female Feedthrough HDMI Connector 40 V ac

2671275
Производитель: RS PRO
Цена за шт.
6134.70 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 8K HDMI Feedthrough Connector – Dual Slim

Get the most out of your 8K devices with the RS PRO HDMI Feedthrough Connector. Experience superior connection quality with our 8K resolution support, allowing you to experience more intense colours and sharper details. With a convenient, direct connection, you can enjoy a seamless transfer of high-quality video and audio signals between devices without any signal conversion or loss of quality.

Why Would You Choose an 8K HDMI Connector?

8K HDMI feed-through connectors are specialised connectors designed to transmit high-definition video and audio signals in the 8K resolution format. HDMI (High-Definition Multimedia Interface) is a widely used interface for transmitting uncompressed video and audio data between various devices, such as televisions, monitors, video game consoles, and computers.

Features and Benefits

  • 8K Shielded Female to Female HDMI connector

  • Nickel frame

  • CSK hole mounting

  • Fits a standard rectangular cut-out

  • Feedthrough

  • Use standard 8K cables

Material

  • Insert: ABS UL94 HB

  • DUAL SLIM Nickel Frame

  • Shell: Gold plated

  • Contacts: Gold Plated

Specification

  • Shielded HDMI 2.1 F-F

  • Voltage Rating: 40V ac

  • Current Rating: 0.5A max

  • Contact Resistance: 10mΩ max

  • Insulation Resistance: 100MΩ max

  • Dielectric Withstanding Voltage: 500V AC

  • Operating Temperature: -25°C to 85 °C

HDMI Specification

  • Version: Shielded HDMI 2.1

  • Supported Video resolution: 7680 x 4320 60 Hz

  • HDR Support: Yes

  • HDCP Specification: 1.4; 2.2

  • Chroma Sub Sampling: 4:4:4

Note

8K equipment and cables are required to achieve 8K resolutions.

Техническая спецификация
pdfRS PRO Datasheet
Кол-во контактов:
1
Концевая заделка:
Feed Through
Материал контактов:
Золоченый
Номинальное напряжение:
40 В перем. тока
Ориентация корпуса:
Прямой
Покрытие контактов:
Золоченый
Размер:
29 mm x 35.5 mm x 19 mm
Род:
Female to Female
Цвет:
Золото
