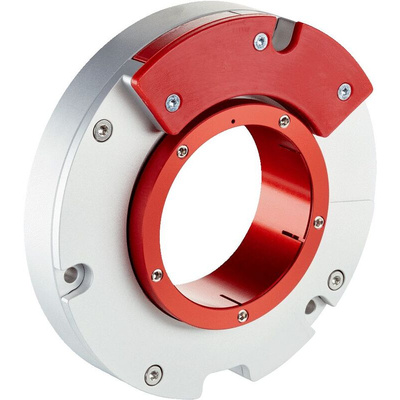

SEM90-HN050AK22, Sick SEM90 Series Absolute Absolute Encoder, 64ppr ppr, Binary Signal, Through Hollow Type, 50mm Shaft

Overview

The trend toward compact and rugged direct drives in factory automation has clearly strengthened in recent years. With the SES/SEM rotative motor feedback system with industrial HIPERFACE®standard interface, SICK is providing new options for hollow shaft types and direct drives. The motor feedback system, which works with holistic sensing, is mounted directly on the drive shaft without addition mounting tools and renders transmission components such as timing belts or couplings unnecessary.

A mechanical multitier function is also integrated into the device, which eliminates the need for additional components such as external buffer batteries. The small design saves space and weight, and is rugged, wear-free, and reliable thanks to the bearing-free technology.

At a glance

Single turn and multitier variants with 25 mm hollow shaft and 50 mm hollow shaft
32 and 64 sine-cosine periods per revolution, 4,096 revolutions with the multitier variant
HIPERFACE®
interface with extended type label
Maximum speed: 6,000 rpm and 8,500 rpm
Easy mounting without special mounting tools
High shock and vibration resistance

Your Benefit

Integrated mechanical multitier function for additional measuring of revolutions without external battery
Direct mounting on the drive shaft renders transmission components such as timing belts or couplings unnecessary
Simple, compact design, wear-free, low maintenance costs
Quick installation without special mounting tools: easy to put on, turn, and go
Rugged and reliable thanks to high shock and vibration resistance
Reliable establishment of the absolute position at high speeds
Mounting check for reading out the axial position of the rotor

Applications

Hollow shafts and torque motors
Applications with axial movements, e.g. extrusion machines, injection moulding machines
Revolving machines and woodworking machines
Rotary table applications
Robot applications

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - SEM90-HN050AK22
