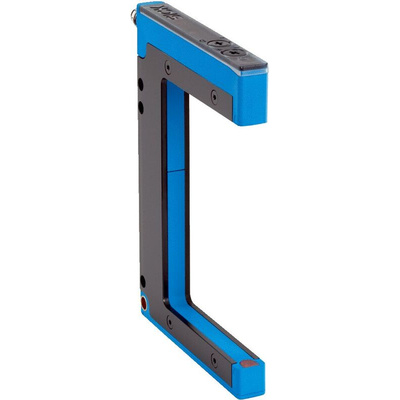

WFE-080060B337, Sick Optical Photoelectric Sensor, Fork Sensor, 80 MM Detection Range, Фотоэлектрический датчик

Overview

The WFE is a rugged fork sensor that is simple and easy to mount. Thanks to its reliability and accurate detection, it is suitable for a large number of applications. The WFE can precisely detect objects up to a size of 0.5 mm with a high switching frequency of 5 kHz. The sensitivity adjustment, a push-pull output, and the ability to select between light and dark switching make it flexible and convenient to use.

The WFE is enclosed in a rugged hybrid housing (IP67) made from ABS plastic with a carbon steel frame and performs reliably even in harsh environments. 5 different fork widths and several different types of connector are available. The WFE is therefore well and truly an all-in-one fork sensor solution.

At a glance

Sender and receiver in a single housing
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output Sender and receiver in a single housing
5 different fork widths from 30 mm to max. 180 mm
High switching frequency of 5 kHz
Minimum detectable object (MDO) of 0.5 mm
Durable hybrid housing made from ABS with carbon steel frame
Sensitivity adjustment
Light/dark switching
Push-pull output

Your Benefit

Very rugged and durable ABS housing with carbon steel frame and IP67 enclosure rating
Quick and easy mounting since the sender and receiver are pre-aligned within the same housing
Large selection of fork widths for different application requirements
Practical and versatile thanks to an intuitive sensitivity adjustment, push-pull output, and light/dark switching
High switching frequency and fine resolution guarantees reliable detection even at high speeds

Applications

Packaging – bottles, boxes or web edge guiding
Machine tools – mechanical parts, gears, metal parts, screws
Electronics
Logistics – positioning of conveying equipment, gears
Automotive – positioning of automotive parts, conveying equipment
Pharmaceutical – detection of syringes, medical parts

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WFE-080060B337
