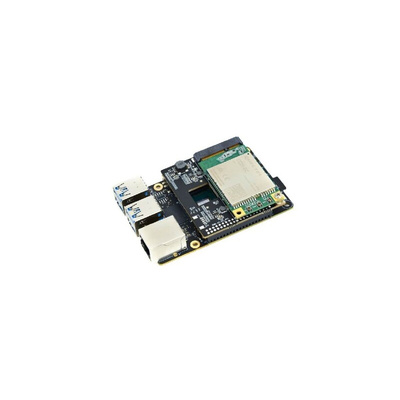

EMB-AS-05, Polyhex DEBIX 4G Board

The DEBIX 4G Board is an add-on board for DEBIX Model A, DEBIX Model B, and DEBIX Model SE Single Board Computers (SBC), delivering seamless 4G network connectivity to enhance the capabilities of DEBIX SBCs. Remarkably compact at just 57.0mm x 51.3mm, this board features a Mini PCIe slot for a 4G module and a Micro SIM slot, ushering in a new era of connectivity for DEBIX SBCs.

Key Benefits of the DEBIX 4G Board

Expanded Connectivity: Bring high-speed 4G network connectivity to the DEBIX Model A, DEBIX Model B, and DEBIX Model SE SBCs. Enjoy enhanced data transfer speeds, improved reliability, and broader connectivity options for your tech corporation's projects.
Compact Design: With a sleek form factor measuring 57.0mm x 51.3mm, the DEBIX 4G Board seamlessly integrates into the DEBIX SBC ecosystem without compromising valuable space.
Effortless Integration: The DEBIX 4G Board facilitates effortless integration into existing DEBIX setups ensuring a smooth transition and allowing you to leverage the 4G connectivity across different DEBIX SBC models.
Modular Expansion: Featuring a Mini PCIe slot for a 4G module, the DEBIX 4G Board offers modular expansion capabilities, allowing the ability to adapt and upgrade connectivity solutions according to evolving project requirements.
Convenient SIM Slot: The inclusion of a Micro SIM slot to the connectivity setup, enables easy access and management of SIM cards for 4G network connectivity. This user-friendly design streamlines the configuration process for tech professionals.
Enclosure Compatibility: The DEBIX 4G Board seamlessly integrates with the EMC-7090B enclosure, providing a cohesive and comprehensive solution for DEBIX Model A and DEBIX Model B installations.

Specifications

SIM Slot: 1 x Micro SIM slot (push pop-up slot)
Mini PCle: 1 x Mini PCIe for 4G module, 52Pin, 5.2mm(H)
FPC Jack: 1 x Flip-type FPC Jack for connection with DEBIX Model A /B/SE, 19P in 0.3m m pitch
LED: 1 x 4G Running Indicator
Antenna: 1 x 4G Antenna
Dimensions: 57mm(L) x 51.3mm(W) x 1.6mm(H)
Power Input: DC 5V/2A
