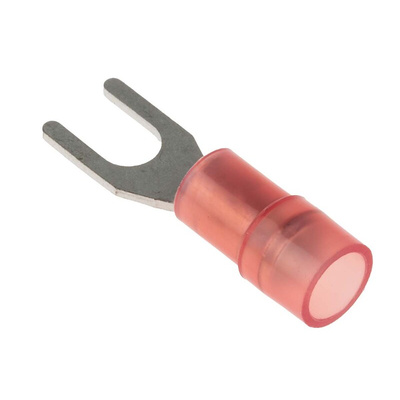

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.7mm Stud Size Nylon, Red

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M3.5 (#6) Stud Size Nylon, Red

This insulated crimp spade connector from RS PRO is the right tool for joining wires quickly without soldering. Simply insert the wire into the tube and use screws and the flat fork to create a reliable connection.

The brass crimp spade terminal features a copper-sleeved barrel that makes it an effective conductor. The red nylon insulation around the connector is flared for easy wire insertion. Like all the crimp spade connectors in this series, it's colour coded to help you remember the correct wire size, which in this case goes from 0.5 mm² to 1.5 mm².

The stud size is M3.5, which tells you that it should be used with a 3.7 mm stud. The connector is 22 mm long overall, with a width of 6.4 mm and a spade thickness of 0.75 mm. Crimp spade connectors are often used by electricians for wiring electrical panels and cable assemblies.

Features and Benefits

• Crimp spade connector


• SNYDL series


• 16 AWG to 22 AWG (American Wire Gauge)


• Tin contact plating


• Copper contact material


• Nylon insulation material


• M3.5 type (#6) to suit a 3.7 mm stud


• Suitable for a wire size range of 0.5 mm² to 1.5 mm²


• Overall length of 22 mm


• Spade thickness of 0.75 mm


• Width of 6.4 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 267-3701

Large Pack Size

RS stock no: 270-7652
