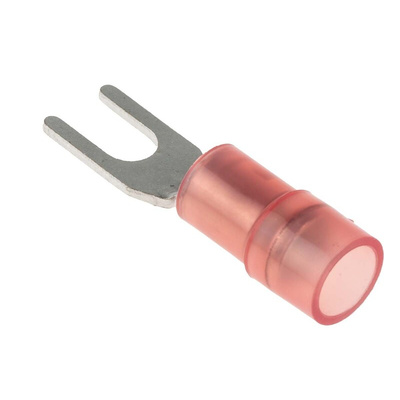

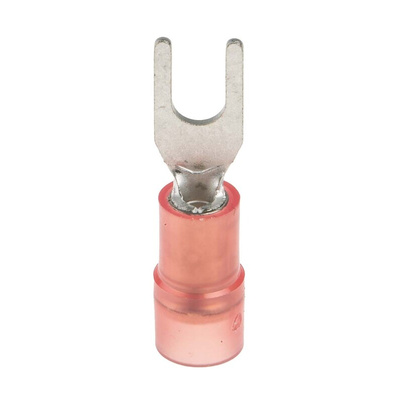

RS PRO Insulated Crimp Spade Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 3.2mm Stud Size Nylon, Red

RS PRO Insulated Crimp Spade Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, M3 (#4) Stud Size Nylon, Red

With an RS PRO insulated crimp spade connector, you can securely connect your wire to a stud or bolt. The flat fork lets you create an effective connection without the need for soldering.

The crimp spade terminal has a copper-sleeved barrel for reliable signal conduction. Made with red nylon insulation, the connector has a flared design that makes it easy to insert your wire. It suits wires ranging from 0.5 mm² to 1.5 mm², from 16 AWG to 22 AWG. An M3 stud size means the connector is suitable for use with a 3.2 mm stud. The spade has a thickness of 0.75 mm, while the connector has a total length of 22 mm and a width of 5.7 mm.

Electricians frequently use crimp spade connectors as a fast, reliable and easy way of wiring terminal blocks and electrical panels.

Features and Benefits

• 16 AWG to 22 AWG (American Wire Gauge)
• Tin contact plating
• Copper contact material
• Nylon insulation material
• M3 type to suit a 3.2 mm stud
• Suitable for a wire size range of 0.5 mm² to 1.5 mm²
• Overall length of 22 mm
• Spade thickness of 0.75 mm
• Width of 5.7 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 267-3717

Large Pack Size

RS stock no: 270-7650
