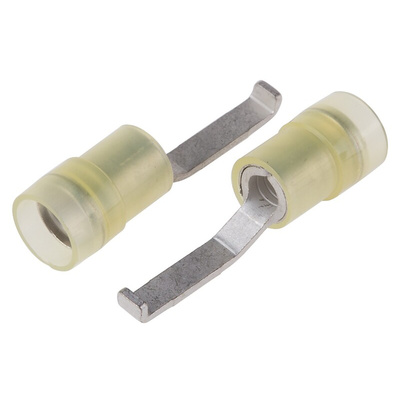

RS PRO Hooked Insulated Crimp Blade Terminal 17.2mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow

RS PRO Insulated Double Crimp Hook Blade Terminals

RS PRO range of insulated double crimp hook blade terminals made from brass with a copper-sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and of excellent quality.
For ease of assembly, these terminals can be fitted to the connection end without soldering and come preinstalled with vinyl that protects the wire from vibrations. This results in a strong and robust connection joint.

Features & Benefits

• Gender: Male


• Insulation: Insulated


• Shrouded: Unshrouded


• Insulation Material: Nylon


• Various colours available


• Contact Material: Copper Contact Plating: Tin

Hook Blade Colour Code

• Red 0.5 - 1.5 mm²


• Blue 1 - 2.6 mm²


• Yellow 2.5 - 6.5 mm²

Note

For hook blades, the overall lengths are 27·4 mm (red), 28·4mm (blue) and 30·2mm (yellow). The size quoted is blade width.

Approvals

UL Listed; UL Listed for Canada

Note

For Hook blades (see stock no. 267-4063) the overall lengths are 27·4 (red), 28·4 (blue) and 30·2 (yellow). Size quoted is blade width.

Approvals

UL Listed; UL Listed for Canada
