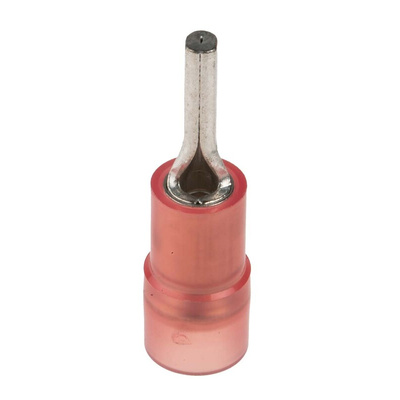

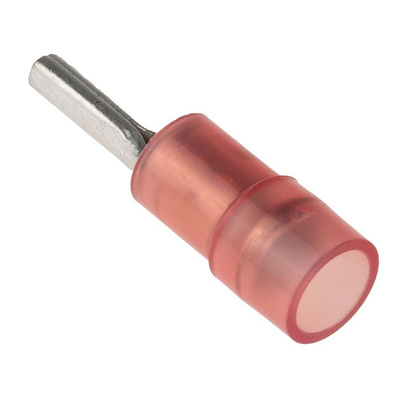

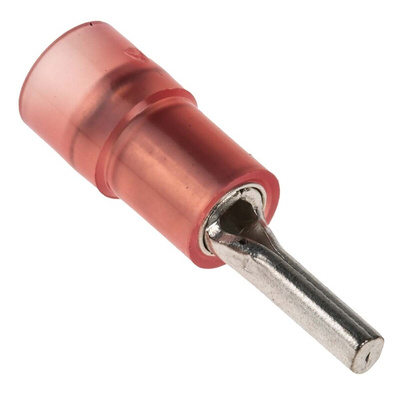

RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 9mm Pin Length, Red

RS PRO Insulated Crimp Pin Connector, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, 1.9 mm Pin Diameter, 9 mm Pin Length, Red

This insulated crimp pin connector from the RS PRO range is a solderless electrical connector that can be used to terminate stranded wire. Simply insert the stripped end of the wire into the connector to terminate.

As it's durable, flexible and doesn't require soldering, this crimp pin connector is quick to use and cost-effective, too. For easy identification, our connectors are colour coded according to the wire size. This one's coloured red and accepts wires from 0.5 mm² to 1.5 mm². We also offer blue connectors for medium-thickness wires and yellow connectors for the thickest wires.

Fully insulated, sturdily designed and built around a robust copper-sleeved barrel, the crimp pin connector is a reliable option to reproduce reliable connections. As a simple way to secure reliable connections, this nylon-insulated connector is widely used in the industrial and automotive sectors.

Features and Benefits

• Insulated with nylon
• 22 AWG minimum wire size
• 16 AWG maximum wire size
• Unshrouded
• Overall length of 19.8 mm
• Pin diameter of 1.9 mm
• Pin length of 9 mm
• Copper contact material

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 267-4091

Large Pack Size

RS stock no: 270-7620
