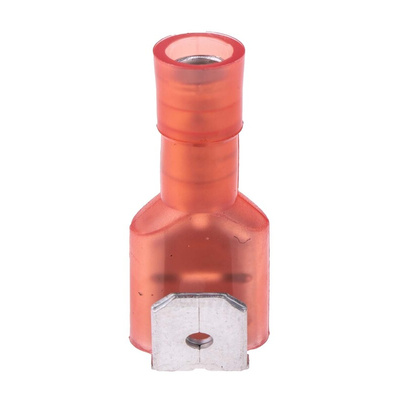

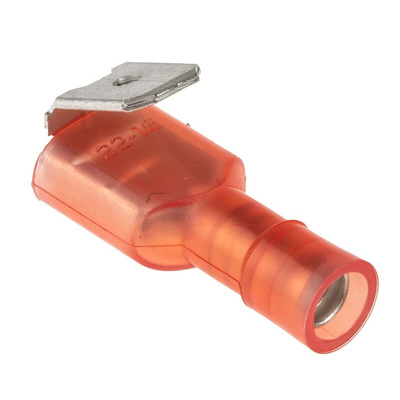

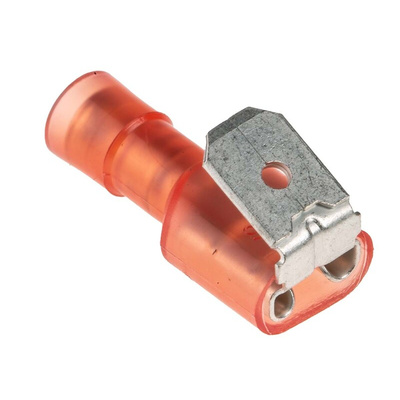

RS PRO Red Insulated Female Spade Connector, Piggyback Terminal, 6.3 x 0.8mm Tab Size, 0.5mm² to 1.5mm², Клемма

RS PRO Red Insulated Spade Connector, 6.3 mm x 0.8 mm Tab Size, 0.5 mm² to 1.5 mm²

This RS PRO spade connector allows you to quickly connect and disconnect wires from circuits without the need for soldering. It's most often used to connect single wires to relays or components.

Designed for crimp termination, once one end has been crimped with a pair of pliers or crimpers, a stripped wire can be easily slotted into the opposite end of the connector. The flaring of the insulation makes insertion even easier. Nylon insulation makes your circuits safer and more reliable by preventing the sort of unintended metal contacts that can lead to short-circuiting.

Most commonly found in automotive electronics, this spade connector is also frequently used in domestic appliances, like dishwashers and washing machines. As part of the RS PRO range, this product has been stringently tested for safety and quality.

Features and Benefits

• Red spade connector
• Wire size range of 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG
• Tab size of 0.8 mm x 6.3 mm
• Length of 21.5 mm
• Shrouded
• Crimp termination method
• Nylon insulation
• Brass contacts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
