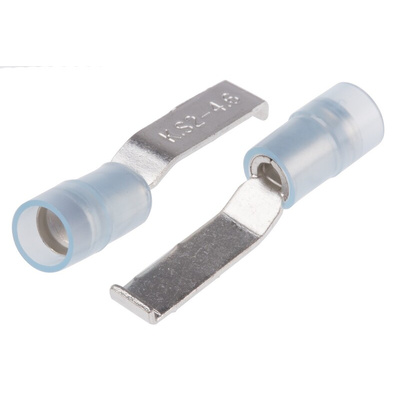

RS PRO Hooked Insulated Crimp Blade Terminal 17.4mm Blade Length, 1.5mm² to 2.5mm², 16AWG to 14AWG, Blue

RS PRO Hooked Insulated Crimp Blade Terminal 17.4 mm Blade Length, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, Blue

This hooked crimp blade terminal from RS PRO is a versatile way to connect a range of different electrical installations. For convenience, these components come preinsulated with nylon ensuring a secure and reliable electrical connection.
A crimp blade terminal provides a gas-tight connection that helps prevent corrosion of metal fixtures through oxidisation. They fit tightly onto the connection end without any soldering for a mechanically robust connection joint that saves you time and effort. The hooked shape of these blade terminals also helps keep them in place, further reducing the risk of disconnection.
These terminals are made from brass with a copper sleeved barrel. The copper is very conductive and resistant to heat and corrosion, giving the terminals a long lifespan. They're typically used on electric lights and other fixtures around the house.

Features and Benefits

• Blade length of 17.4 mm
• Blade thickness of 0.8 mm
• Blade width of 4.6 mm
• Blue colour
• Copper contact material
• Tin contact plating
• Male gender
• Hooked
• Inner diameter of 5.2 mm
• Insulated insulation
• Nylon insulation material
• Minimum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 1.5 mm²
• Maximum wire size of 14 AWG (American Wire Gauge)
• Maximum wire size of 2.5 mm²
• Overall length of 28.2 mm
• Unshrouded
