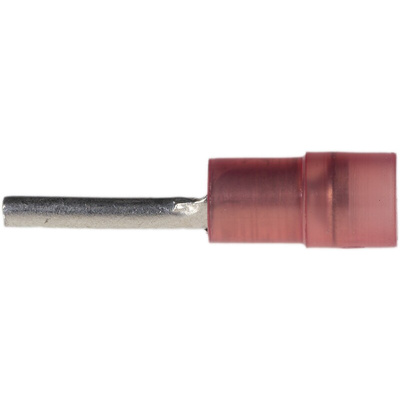

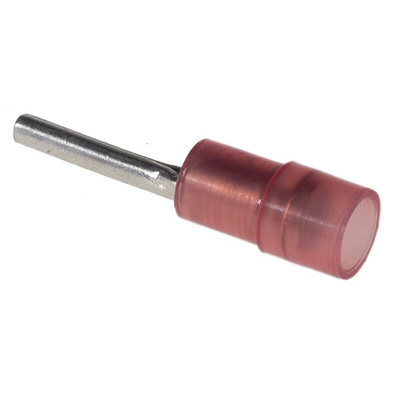

RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 12mm Pin Length, Red

RS PRO Insulated Double Crimp Pin Terminals

Introducing the RS PRO Insulated Double Crimp Pin Terminals - your ultimate solution for quick, secure, and corrosion-free electrical connections! Say goodbye to unreliable connections and hello to peace of mind. These double crimp pin terminals create an airtight seal, keeping out oxygen and moisture that can cause corrosion.
With tin-plated copper contacts and a reliable crimp blade, you can trust that your electrical connection will be rock solid. Plus, the added insulation ensures protection against chemical and mechanical damage. And the best part? You can even colour-code your connections for easy identification.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 22 to 16 AWG.

Features and Benefits

• Insulated double crimp pin terminals


• Contact Material: Copper


• Contact Plating: Tin


• Insulated


• Unshrouded

Colour Code

• Red 0.5 - 1.5 mm²


• Blue 1 - 2.6 mm²


• Yellow 2.5 - 6.5 mm²

Note

Size quoted is pin length.

Approvals

UL Listed; UL Listed for Canada

Small Pack Size

Per Unit, RS stock no: 267-4401

Large Pack Size

RS stock no: 270-7619
