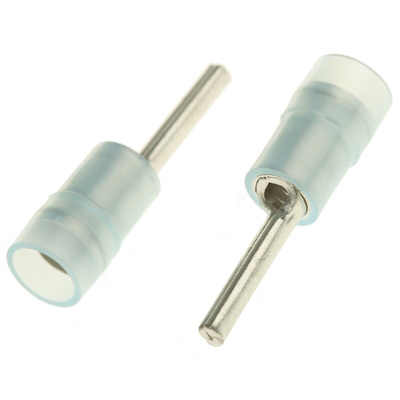

RS PRO Insulated Crimp Pin Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 1.9mm Pin Diameter, 12mm Pin Length, Blue

RS PRO Insulated Crimp Pin Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, 1.9 mm Pin Diameter, 12 mm Pin Length, Blue

You can use these RS PRO crimp-pin connectors to terminate an open wire with no need for soldering. Simply insert one of the connector ends into the pin's terminal, and you'll then be able to connect the pin with other pins or insert it into a fitting socket.
The pins are made from brass with a strong copper-sleeved barrel to ensure they last for longer. They also feature robust, funnel-entry nylon insulation for added safety and resistance to corrosion.
These units are handled and packed in compliance with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) certifications that guarantee the risk of discharge is minimised. They also conform to Restriction of Hazardous Substances (RoHS) criteria, so you can be sure they include only minimal amounts of any harmful materials.

Features and Benefits

• Blue colour
• Copper contact material
• Nylon insulation material
• Maximum wire size of 14 AWG (American Wire Gauge)
• Maximum wire size of 2.5 mm²
• Minimum wire size of 16 AWG (American Wire Gauge)
• Minimum wire size of 1.5 mm²
• Overall length of 22.8 mm
• Pin diameter of 1.9 mm
• Pin length of 12 mm
• Unshrouded
