RS PRO Insulated Crimp Blade Terminal 10mm Blade Length, 0.5mm² to 1.5mm², 22AWG to 16AWG, Red

RS PRO Insulated Crimp Blade Terminal 10 mm Blade Length, 0.5 mm² to 1.5 mm², 22 AWG to 16 AWG, Red

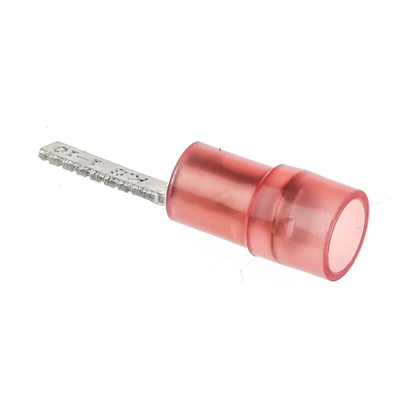

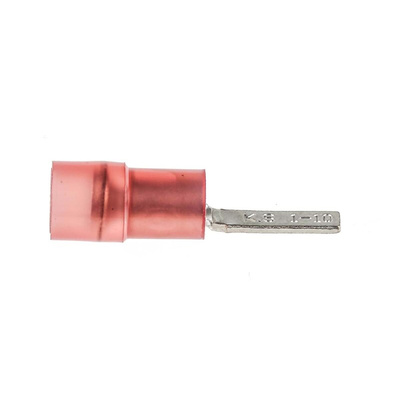

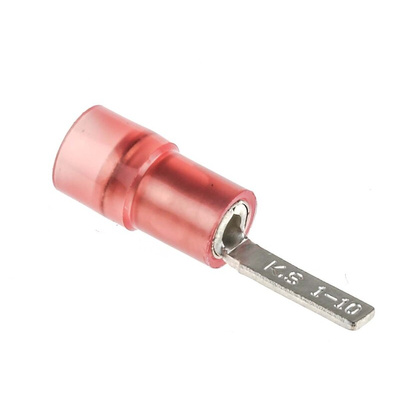

This RS PRO double-crimp blade terminal is a reliable way to connect your wires without the need for soldering. Insulated and unshrouded, the terminal has a robust design that’s convenient and easy to use.

The male crimp blade terminal is made from brass with a copper-sleeved barrel. This is coated in tin providing it with a high-quality conductor material for your connection. It's insulated with nylon and this protects your connection from damage too.

Part of the RS PRO range, this crimp blade terminal is used by electricians for a wide variety of functions. It’s part of a colour-coded system and this red terminal is made for 0.5 mm² to 1.5 mm² wires across an American Wire Gauge range of 14 AWG to 22 AWG. It has an inner diameter of 4.5 mm and an overall length of 20.8 mm.

Features and Benefits

• Insulated and unshrouded crimp blade terminal
• Male gender
• Nylon insulation material
• Copper contact material plated in tin
• Wire size range of 0.5 mm² to 1.5 mm²
• American Wire Gauge range of 14 AWG to 22 AWG
• Blade thickness of 0.75 mm
• Blade length of 10 mm
• Blade width of 2.3 mm
• Inner diameter of 4.5 mm
• Overall length of 20.8 mm
• Red colour

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size

Per Unit, RS stock no: 267-4467

Large Pack Size

RS stock no: 270-7461
