Siretta QUARTZ-GOLD-21-5G (GL) + ACCESSORIES 3G, 4G, 5G

Siretta QUARTZ-GOLD 5G Dual Gigabit LAN Router With Accessories

The QUARTZ-GOLD-5G router is a high speed dual port gigabit ethernet industrial router designed for transferring large amounts of data via the 5G NR cellular network. The QUARTZ-GOLD-5G’s fast data transfer capability reaches up to 2.1 Gbps download and up to 900Mbps upload speed. It also has fall-back to 4G/LTE and 3G/UMTS communication, should 5G NR be unavailable. It is well suited for high speed mobile broadband applications, offering reliable, secure wireless connectivity.

Features & Benefits

Global 5G NR (NSA & SA Modes) , 4G / LTE and 3G / UMTS bands
High speed data downlink via LTE Cat 16 network
High speed data uplink via LTE Cat 18 network
2 x GbE Local LAN (Router Mode)
1 x GbE Local LAN & 1 x GbE Remote WAN (Backup Mode)
RS232
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Compact industrial design
Excellent temperature endurance
VPN: OpenVPN, PPTP, L2TP, GRE, IPSec

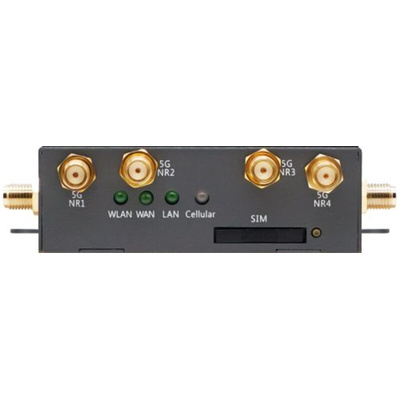

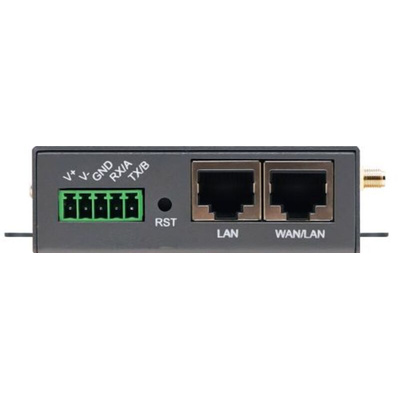

Physical Interfaces

2 x Gigabit RJ-45 Ethernet Interfaces
1 ´ Standard SIM/R-UIM interface
4 ´ SMA (Female) Cellular interface
1 x Serial RS232
1 ´ DC Power Interface (7.5 to 32 V DC)

The Siretta QUARTZ GOLD 5G router is powered with a Mediatek 880 MHz MIPS dual-core processor with 256 Mb flash and 2 Gb of DDR3 RAM which drives the Linux based operating system. It is driven by the qualcomm snapdragon X55 5G modem which provides the cellular capabilities of the QUARTZ GOLD 5G and is manufactured on a leading edge 7 nm semiconductor fabrication process.

Applications

Payment Services
Vending machine connectivity
Retail POS
Internet based Video surveillance
Digital Signage
Public Transportation
Digital signage

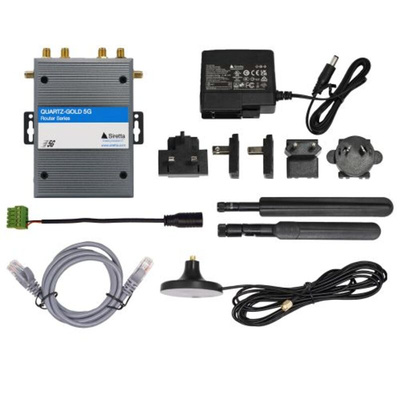

Accessories Included

4 x Cellular Antennas
4 x Cellular Antenna Magnetic Mount Extenders
1 x Power Block Interface
1 x LAN Cable
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
FCC
RoHS
