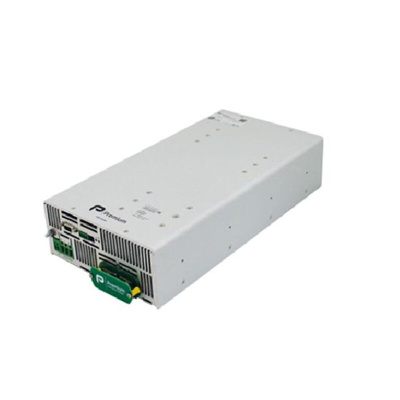

RS PRO Pure Sine Wave 3000W DC AC Inverter, 110V dc Input, 230V ac Output, Railway Approved

RS PRO 3000W Railway Approved DC-AC Power Inverter (230V Output)

A hardwearing and reliable DC-AC inverter for the conversion of an unregulated (DC) 110V power source (for instance a battery) to a Pure Sinewave 230V AC output. Suitable for use with a wide range of equipment and featuring adjustable output voltage for the operation of sensitive equipment.
The DC-AC power inverter is easy to use and compatible with remote controls using the RS 232 port or to alarms using the isolated relay contacts.
The DC-AC inverter features maximum average power and maximum output peak current protection to protect the unit in cases of output short circuit and a disable function for input under-voltage to protect batteries from discharge. On top of this the DC-AC inverter provides protection to the equipment being powered isolating the device from the power supply with its high input-output isolation of 3000Vrms (voltage regulator modules)
Enclosed in a sturdy metal case with resistance to shock and vibration and suitable for chassis mounting the 230V power inverter is suitable for a wide range of industries including marine, industrial control systems and approval for use in railway applications.

Features and Benefits

DC-AC power inverter
Pure Sinewave
110V dc input voltage
Input voltage range of 77 to 138V
230V output voltage (adjustable)
Output current of 13A
3000W output power
Output current alarm
Chassis mount
Air cooled
RS-232 port
Input-output Isolation 3000Vrms
Efficiency of 92%
Railway Approved
Maximum average power protection
Maximum output peak current protection
Input under voltage disable function
Chassis mount
Output via a cable size of up to 4mm

Standards and Approvals: EN50155, EN45545-2
