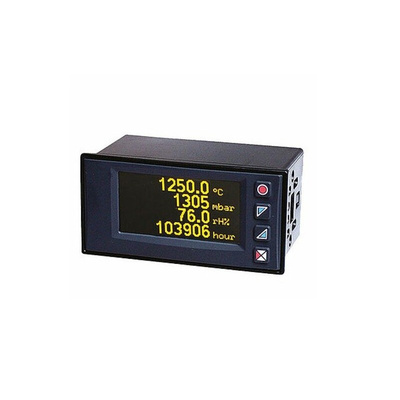

DMS96480, Wachendorff Wachendorff OLED Gateway for Pressure, Resistance, Temperature, 48mm x 96mm

The Wachendorff OLED strain gauge display is ideal for simply and directly visualizing your signal from strain gauges or pressure cells. The DMS9648O can also be used as a very flexible and precise laboratory device. The display can be parameterized and adjusted easily, quickly and ideally to the existing task area using the 4 keys. The display has a sampling frequency of up to 1.2 kHz for dynamic weight measurement and weighing. You have different options for calibrating the analog input. Various settings for the tare function, the totalizer and the sum function, as well as data logging with a programmable sampling time are just a few of the many firmware features. The operator is pleased with the clear user interface, with which you can see all parameters at a glance and easily change values. The monochrome yellow OLED display enables optimal readability even from an extremely large reading angle in difficult industrial environments, even in direct sunlight.

Monochrome yellow OLED display
DMS display in 96 mm x 48 mm format
Sampling frequency up to 1.2 kHz
For 4-wire strain gauges
Vertical or horizontal installation
2 alarm outputs
1 analogue output from 0/4 mA to 20 mA
Serial communication via RS485 modbus interface
2 programmable user inputs
Programming via text menu in 5 languages
