K2252 WHI, MK Electric White 2 Gang Plug Socket, 15A, NEMA 5-15R, Indoor Use

MK Electric Socket Outlet

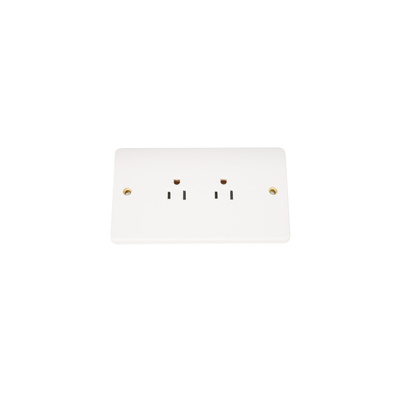

The MK Electric 2 gang white socket-outlet is designed for ease of installation. It has a voltage rating of 127V and a current rating of 15A with the number of poles of 2-pin +E American socket. The socket has in-line terminals for ease of cable access and all the terminal screws are backed out and captive.
Supplied with:
Two M3·5 fixing screws.
Logic Plus MK Wiring Accessories
The New Logic Plus range supplied by Caradon MK Electric Ltd combines the ultimate in safety requirements for electrical accessories with innovative design and ease of installation.

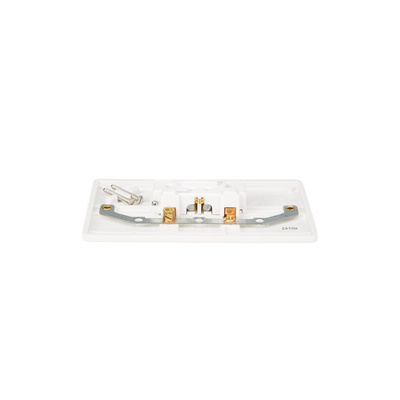

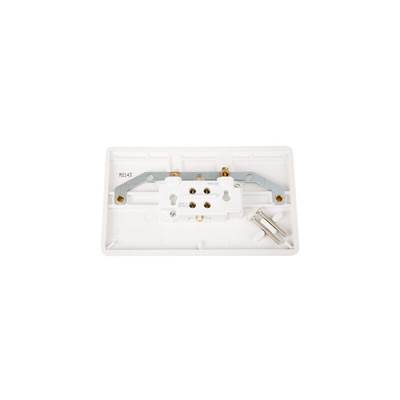

Logic Plus products have in-line terminals for ease of cable access and all terminal screws are backed out and captive. Terminals are top facing for easy screwdriver access and markings are always printed in white on the rear grey polyester moulding. All Logic Plus sockets have 3-pin operated safety shutter providing safe protection from live parts.
Radiused corners to the faceplates and a chamfered top edge offers a slimline and unobtrusive appearance, whilst preventing unsightly dust collection. The mouldings are hardwearing, scratch-resistant and are not degraded by U.V.

Features and Benefits

Flush mount
Urea Formaldehyde material
NEMA 5-15R socket
Captive screw terminal
Earth terminal
Indoor use
The number of poles are 2

Certifications

IP2XD rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Logic Plus series
