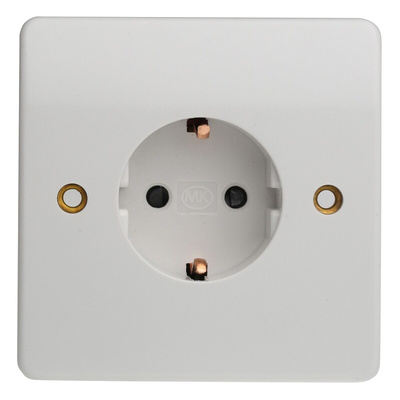

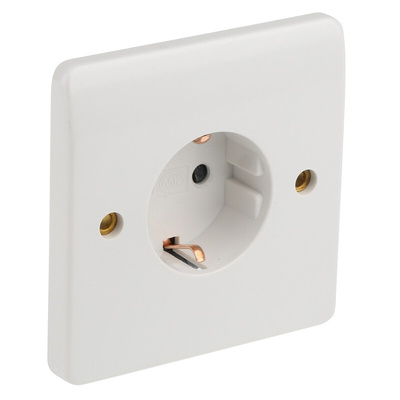

K4150 WHI, MK Electric White 1 Gang Plug Socket, 16A, Type F - German Schuko, Indoor Use

MK Electric Plug Socket

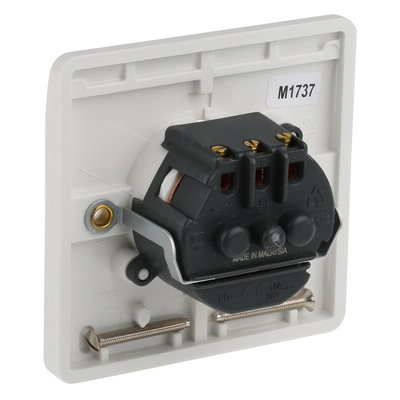

The MK Electric logic plus series flush mount 1 gang plug socket has a current rating of 16A and voltage rating of 230VAC. It combines the ultimate in safety requirements for electrical accessories with an innovative design and ease of installation. It has in-line terminals for ease of cable access and all terminal screws are backed out and captive. Its terminals are top facing for easy screwdriver access and markings are always printed in white on the rear grey polyester moulding. The socket has a 3-pin operated safety shutter for providing safe protection from live parts. Radiused corners to the faceplates and a chamfered top edge offer a slimline and unobtrusive appearance, whilst preventing unsightly dust collection. The moulding is hardwearing, scratch-resistant and not degraded by U. V.

Features and Benefits

White in colour
Type F - German Schuko
Overall height is 86mm
Overall width is 86mm
Screwed faceplate mounting
Captive screw terminal
Earth terminal
Semi-gloss finish
Number of module is 2

Certifications

IP2XD rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Logic Plus series
